home fini home fini Products home fini Rotary screw compressors home fini NOBEL 11-08 DF

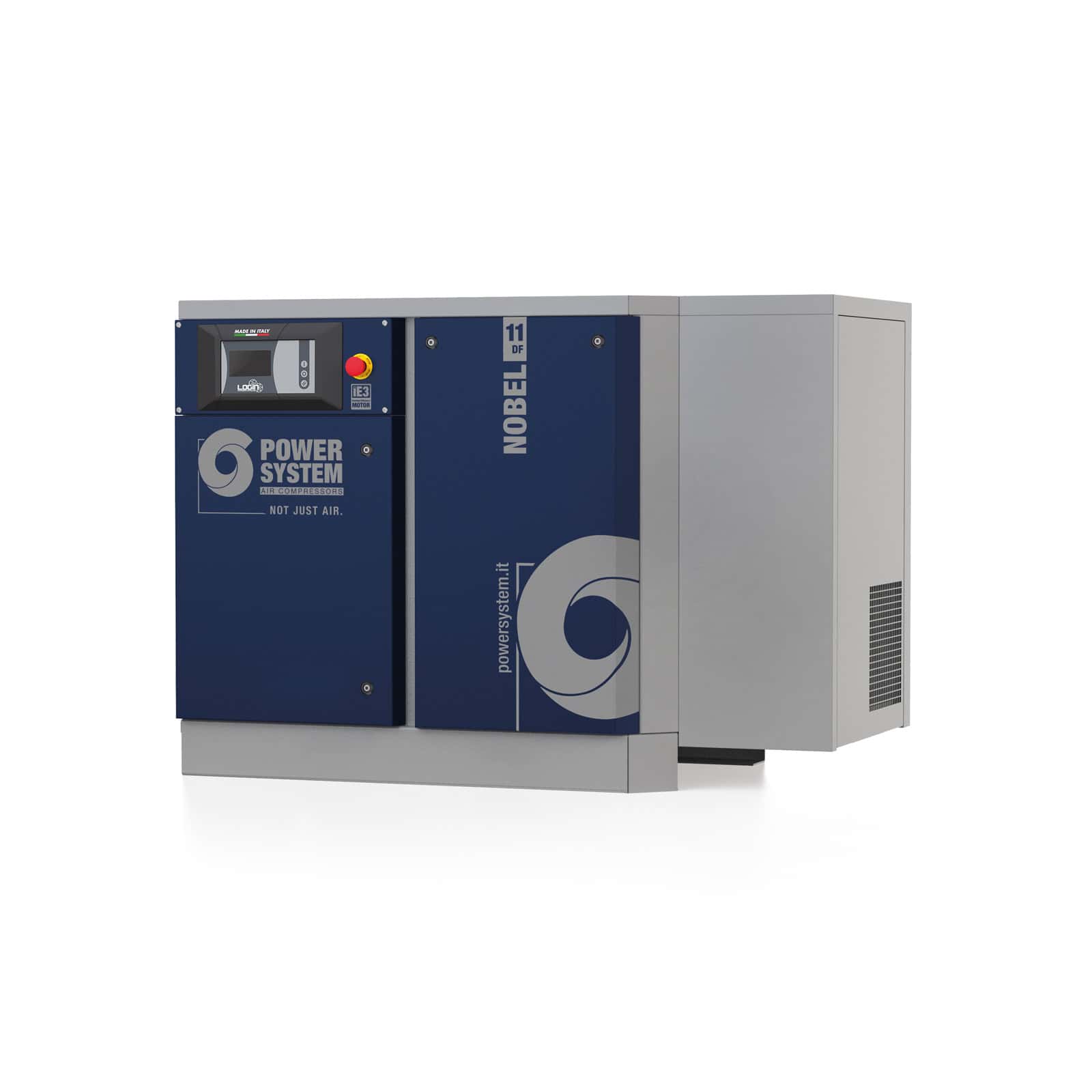

NOBEL 11-08 DF
Screw compressor with direct drive transmission, complete with dryer.

Air dryer + filters
IE4
LOGIN controller

Lubricated screw compressor with coaxial transmission. Modern and versatile LOGIN electronic controller. Compact and silent, complete with integrated dryer with prefilter and microfilter

lubrificazione power system
Lubrication
Lubricated
aria-resa power system
Air outflow
1700 l/min.
pressione-max power system
Max. pressure
8bar / 116psi
potenza power system
Power
11 kW
Contact your Sales representative
NOBEL 11-08 DF Screw compressor with direct drive transmission, complete with dryer.
NOBEL 11-08 DF Screw compressor with direct drive transmission, complete with dryer. dettaglio

Technical data

NOBEL 11-08 DF
Product code
V60CD92PWSB87
Lubrication
Lubricated
Air-end
FS50
Air receiver (l)
-
Power (kW)
11
Air outflow
l/min.
m3/min.
c.f.m.
1700
1,7
60
Max. pressure
bar
p.s.i.
8
116
Nr. of stages
1
Sound level (dB(A))
*
67
Voltage / Frequency (Volt / Hz)
400/50
Connection (G)
3/4"
Controller
LOGIN
Type motor
Electric
Energy efficiency
IE3
Gross weight (kg)
340
Net weight (kg)
319
Packaging dimensions LxWxH (mm)
1510x810x1180
Net Dimensions LxWxH (mm)
1450x750x1000
*Sound pressure level measurement carried out at a distance of 7 metres.

Download

catalogo powersystem
Catalogue
download powersystem download powersystem
dati tecnici powersystem
Technical data
download powersystem download powersystem
