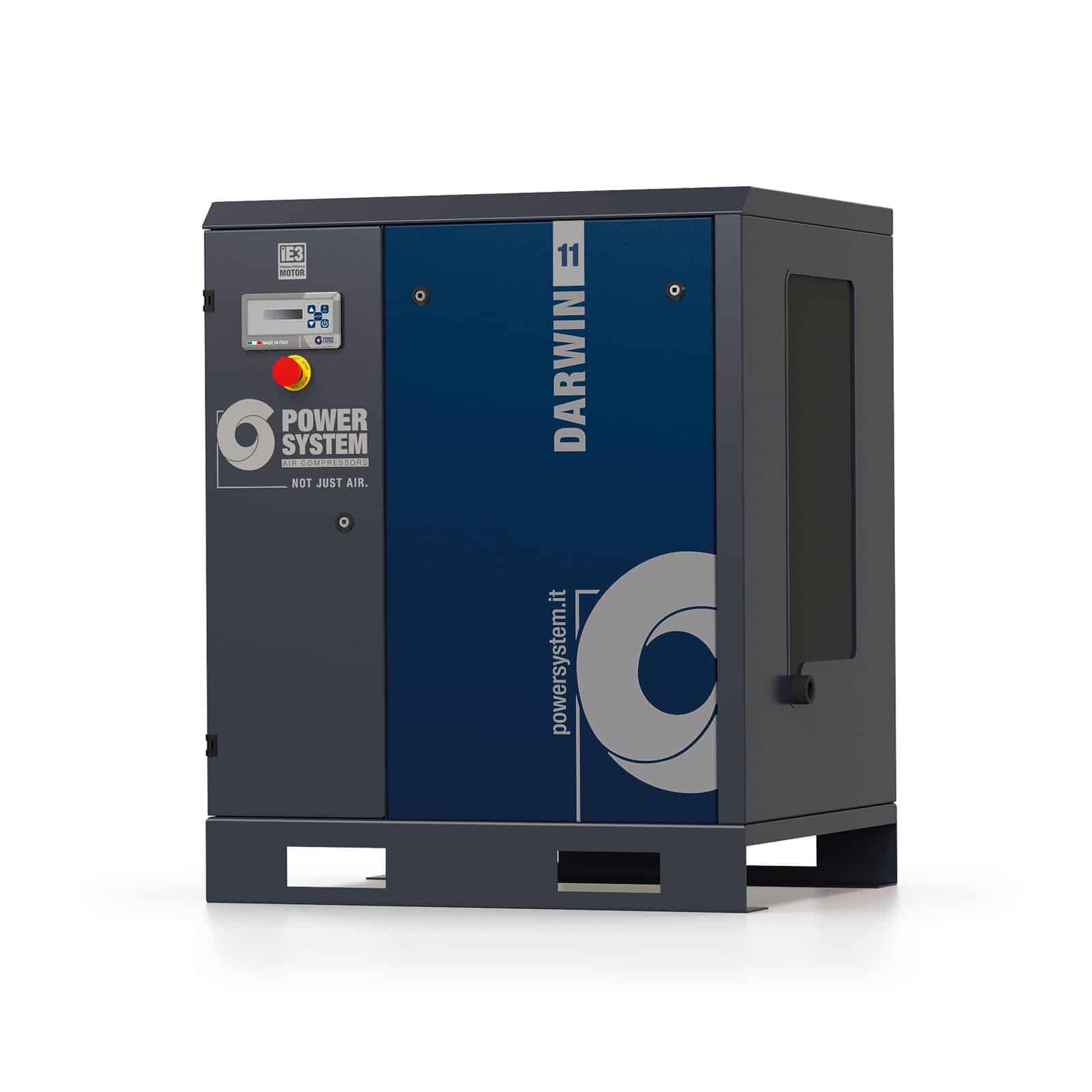

Darwin 11-10
Screw compressor with belt transmission.

DNAir1 controller
IE3

Three-phase belt-transmission lubricated screw compressor with DNAir1 electronic controller and star/delta starterer. Soundproof cab in hot-dip galvanised sheet metal for maximum silence

lubrificazione power system
Lubrication
Lubricated
aria-resa power system
Air outflow
1500 l/min.
pressione-max power system
Max. pressure
10bar / 145psi
potenza power system
Power
11 kW
Contact your Sales representative
Darwin 11-10 Screw compressor with belt transmission.
Darwin 11-10 Screw compressor with belt transmission. dettaglio

Technical data

Darwin 11-10
Product code
V60NM92PWSA87
Lubrication
Lubricated
Air-end
FS26
Air receiver (l)
-
Power (kW)
11
Air outflow
l/min.
m3/min.
c.f.m.
1500
1,5
53
Max. pressure
bar
p.s.i.
10
145
Nr. of stages
1
Sound level (dB(A))
*
69
Voltage / Frequency (Volt / Hz)
400/50
Connection (G)
3/4"
Controller
DNAir1
Type motor
Electric
Energy efficiency
IE3
Gross weight (kg)
230
Net weight (kg)
216
Packaging dimensions LxWxH (mm)
940x770x1150
Net Dimensions LxWxH (mm)
820x680x980
*Sound pressure level measurement carried out at a distance of 7 metres.

Download

catalogo powersystem
Catalogue
download powersystem download powersystem
dati tecnici powersystem
Technical data
download powersystem download powersystem
