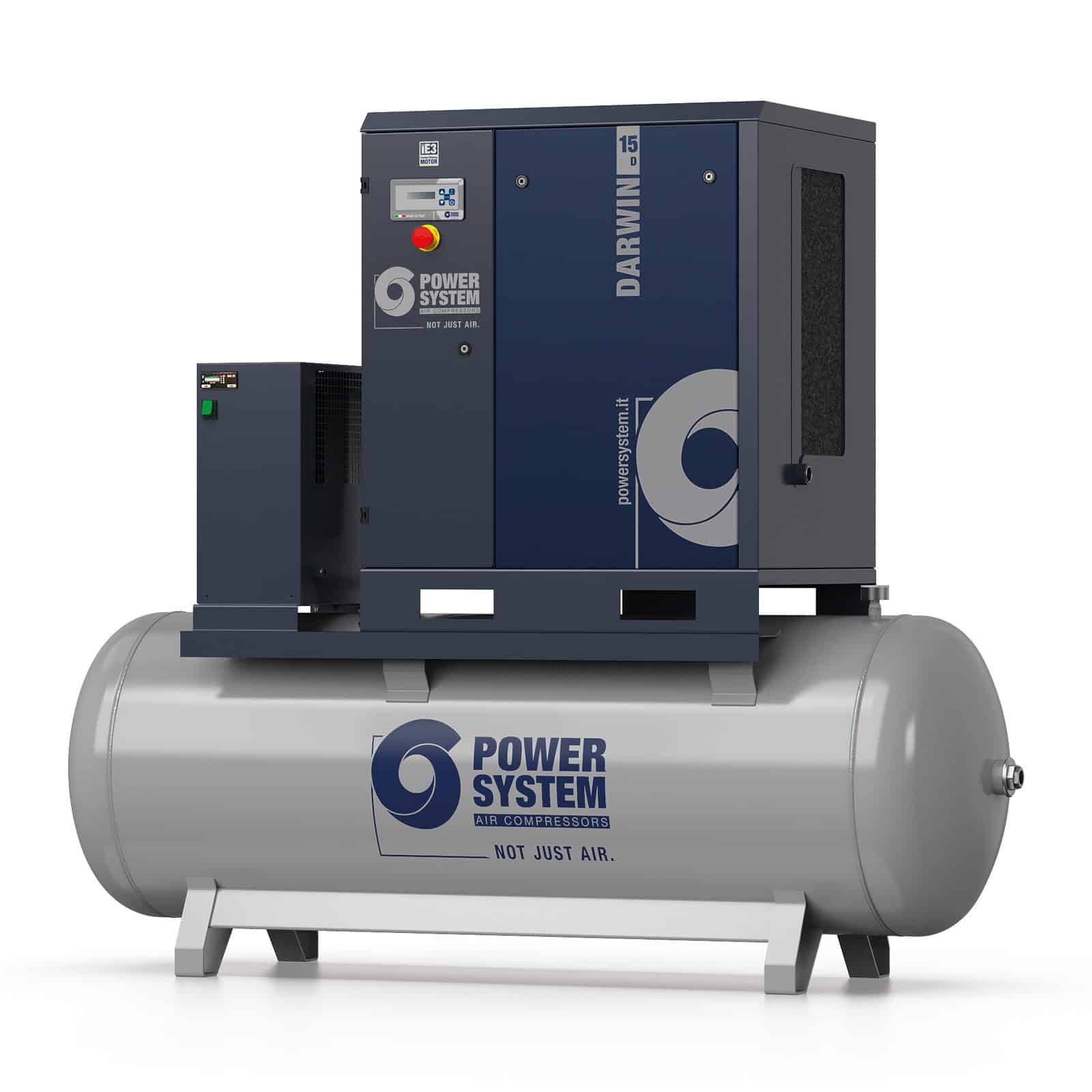

Darwin 15-13-500 D
Screw compressor with belt transmission, complete with tank and dryer.

DNAir1 controller
High pressure
Air dryer

Three-phase belt-transmission lubricated screw compressor with DNAir1 electronic controller and star/delta starterer. Sheet metal soundproof cab complete with 500-litre tank and refrigerated dryer

plus fini
Read more
lubrificazione power system
Lubrication
Lubricated
aria-resa power system
Air outflow
1500 l/min.
pressione-max power system
Max. pressure
13bar / 189psi
potenza power system
Power
15 kW
Contact your Sales representative
Darwin 15-13-500 D Screw compressor with belt transmission, complete with tank and dryer.
Darwin 15-13-500 D Screw compressor with belt transmission, complete with tank and dryer. dettaglio

Technical data

Darwin 15-13-500 D
Product code
V83NR92PWSB80
Lubrication
Lubricated
Air-end
FS26
Air receiver (l)
500
Power (kW)
15
Air outflow
l/min.
m3/min.
c.f.m.
1500
1,5
53
Max. pressure
bar
p.s.i.
13
189
Nr. of stages
1
Sound level (dB(A))
*
70
Voltage / Frequency (Volt / Hz)
400/50
Connection (G)
1"
Controller
DNAir1
Type motor
Electric
Energy efficiency
IE3
Gross weight (kg)
452
Net weight (kg)
412
Packaging dimensions LxWxH (mm)
2070x800x1850
Net Dimensions LxWxH (mm)
2000x680x1630
*Sound pressure level measurement carried out at a distance of 7 metres.

Download

catalogo powersystem
Catalogue
download powersystem download powersystem
dati tecnici powersystem
Technical data
download powersystem download powersystem
