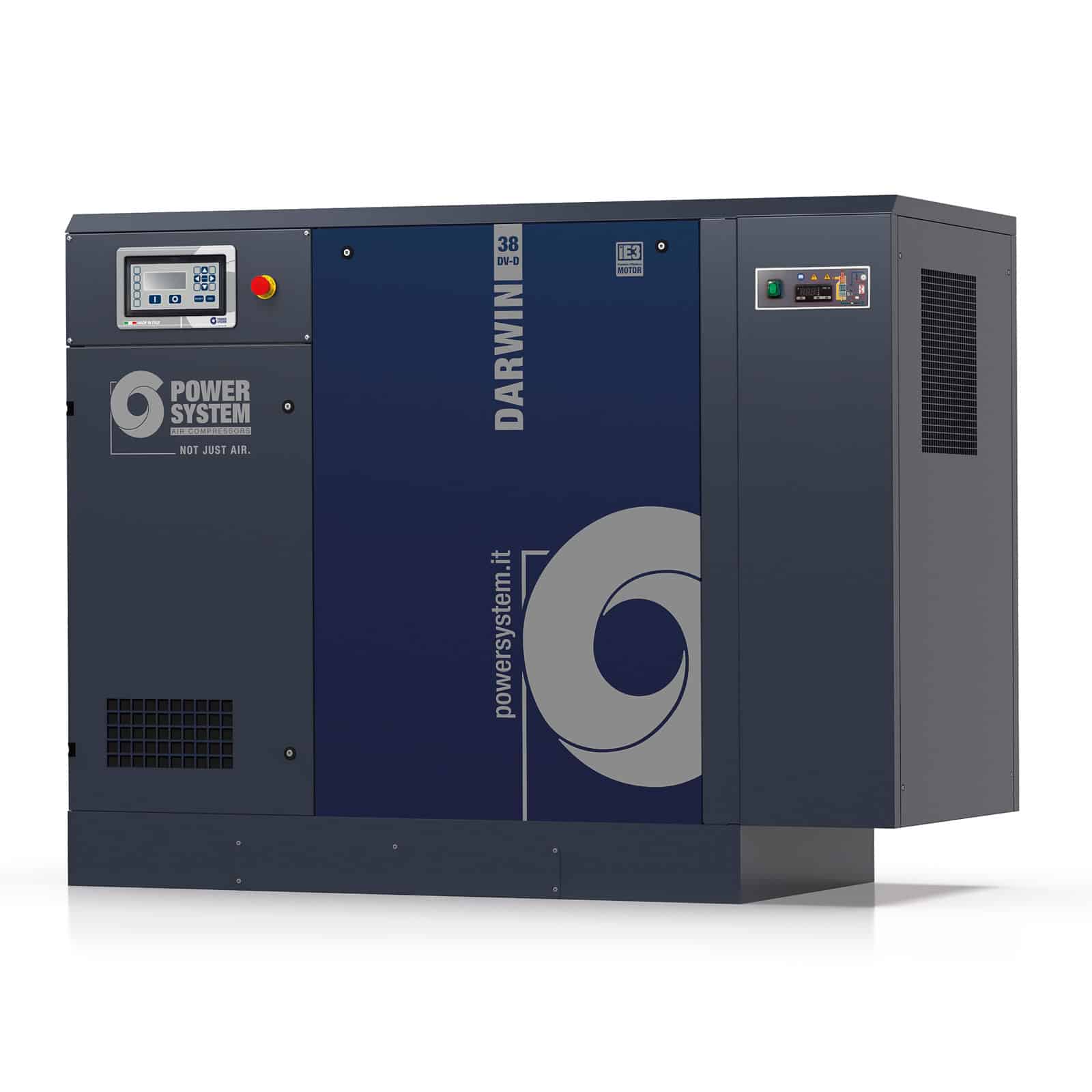

Darwin 38-08 DV-D
Belt transmission screw compressor, with high energy efficiency.

DNAir2 controller
IE3
Variable speed

Lubricated screw compressor with belt transmission, DNAir2 electronic controller and inverter regulation. Soundproof cab made of painted sheet metal and radial ventilation and complete with integrated dryer

plus fini
Read more
lubrificazione power system
Lubrication
Lubricated
aria-resa power system
Air outflow
2400 / 6000 l/min.
pressione-max power system
Max. pressure
8bar / 116psi
potenza power system
Power
37 kW
Contact your Sales representative
Darwin 38-08 DV-D Belt transmission screw compressor, with high energy efficiency.
Darwin 38-08 DV-D Belt transmission screw compressor, with high energy efficiency. dettaglio

Technical data

Darwin 38-08 DV-D
Product code
V60BK97PWSB87
Lubrication
Lubricated
Air-end
FS140
Air receiver (l)
-
Power (kW)
37
Air outflow
l/min.
m3/min.
c.f.m.
2400 / 6000
2.4 / 6
85 / 212
Max. pressure
bar
p.s.i.
8
116
Nr. of stages
1
Sound level (dB(A))
*
68
Voltage / Frequency (Volt / Hz)
400/50
Connection (G)
1 - 1/2"
Controller
DNAir2
Type motor
Electric
Energy efficiency
IE3
Gross weight (kg)
898
Net weight (kg)
813
Packaging dimensions LxWxH (mm)
2050x1140x1670
Net Dimensions LxWxH (mm)
1860x910x1440
*Sound pressure level measurement carried out at a distance of 7 metres.
