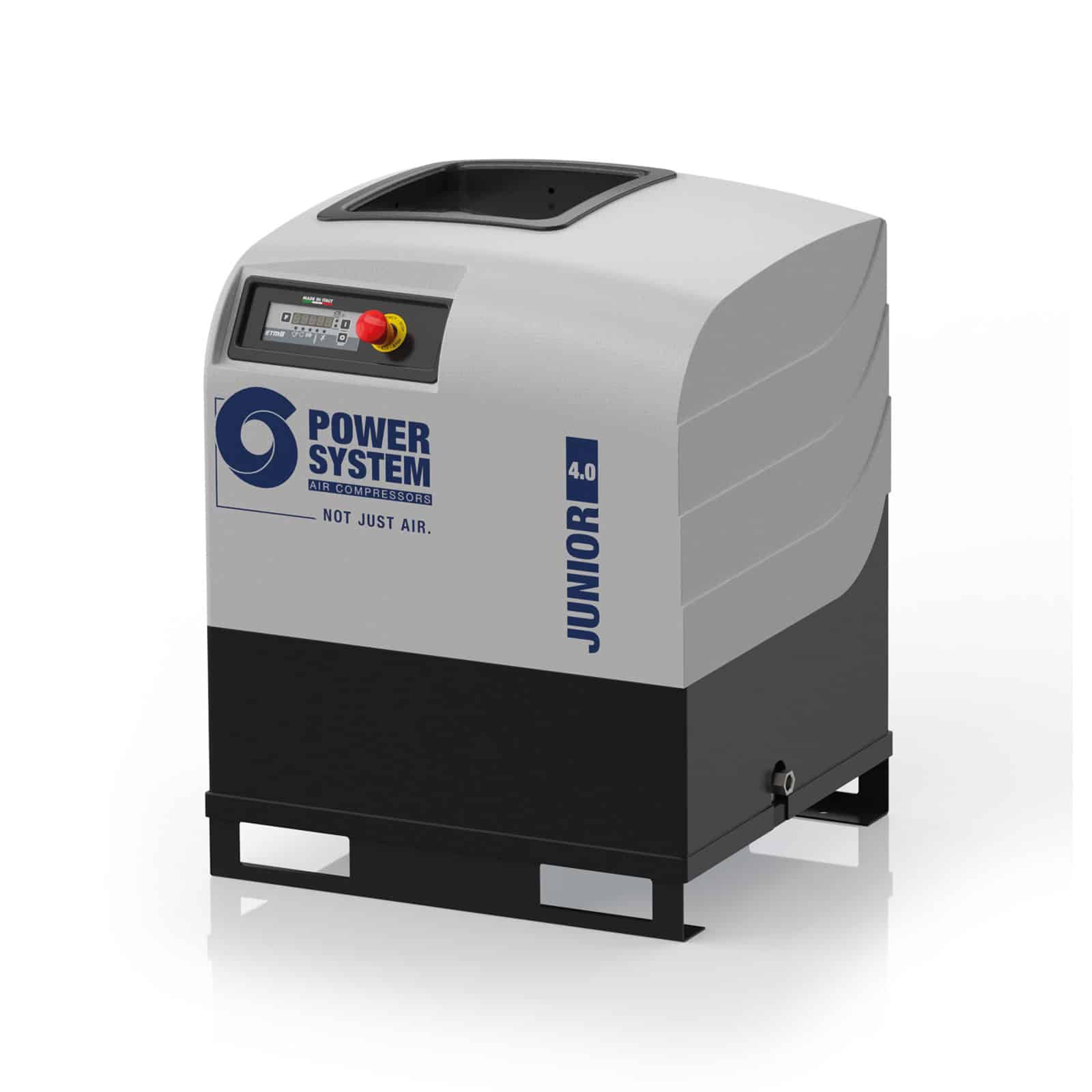

JUNIOR 4.0-10 D
Compact, direct drive transmission screw compressor.

ETMII controller
Air dryer

Three-phase lubricated screw compressor with coaxial transmission for efficiency and reliability. Particularly compact and easy to install and maintain, with integrated refrigerated dryer in the cab

plus fini
Read more
lubrificazione power system
Lubrication
Lubricated
aria-resa power system
Air outflow
460 l/min.
pressione-max power system
Max. pressure
10bar / 145psi
potenza power system
Power
4 kW
Contact your Sales representative
JUNIOR 4.0-10 D Compact, direct drive transmission screw compressor.
JUNIOR 4.0-10 D Compact, direct drive transmission screw compressor. dettaglio
JUNIOR 4.0-10 D Compact, direct drive transmission screw compressor. altre applicazioni

Technical data

JUNIOR 4.0-10 D
Product code
V51PD92PWS143
Lubrication
Lubricated
Air-end
FS26
Air receiver (l)
-
Power (kW)
4
Air outflow
l/min.
m3/min.
c.f.m.
460
0,46
16
Max. pressure
bar
p.s.i.
10
145
Nr. of stages
1
Sound level (dB(A))
*
63
Voltage / Frequency (Volt / Hz)
400/50
Connection (G)
1/2"
Controller
ETMII
Type motor
Electric
Gross weight (kg)
130
Net weight (kg)
119
Packaging dimensions LxWxH (mm)
720x670x970
Net Dimensions LxWxH (mm)
650x580x750
*Sound pressure level measurement carried out at a distance of 7 metres.
