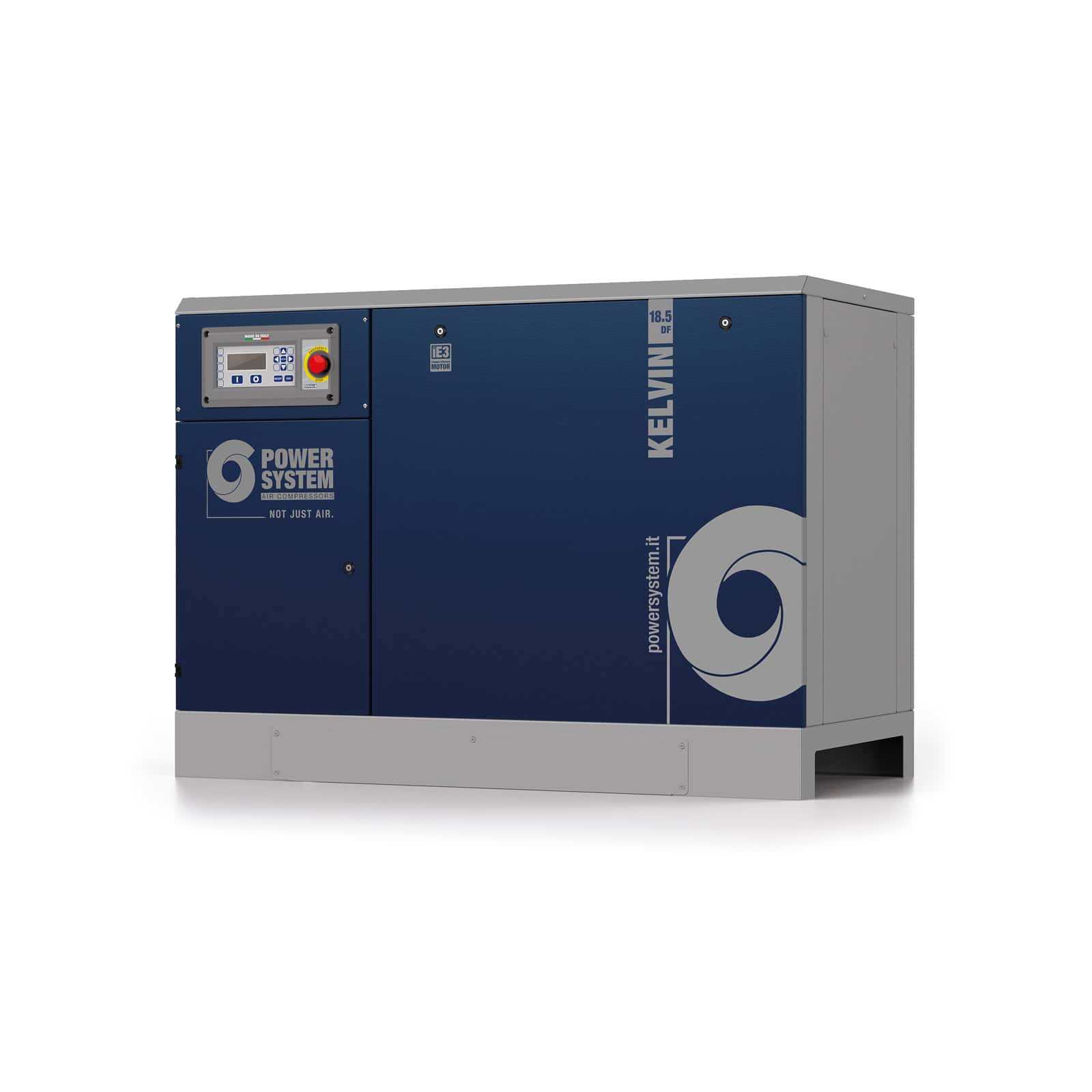

KELVIN 18.5-13 DF
Screw compressor with belt transmission.

DNAir2 controller
Air dryer + filters
Thermostatic valve

Lubricated screw compressor with belt transmission, DNAir2 electronic controller. Soundproof cabin, radial ventilation and integrated refrigerated dryer complete with prefilter and microfilter

lubrificazione power system
Lubrication
Lubricated
aria-resa power system
Air outflow
2050 l/min.
pressione-max power system
Max. pressure
13bar / 189psi
potenza power system
Power
18,5 kW
Contact your Sales representative
KELVIN 18.5-13 DF Screw compressor with belt transmission.

Technical data

KELVIN 18.5-13 DF
Product code
V60SZ92PWSB87
Lubrication
Lubricated
Air-end
FS50
Air receiver (l)
-
Power (kW)
18,5
Air outflow
l/min.
m3/min.
c.f.m.
2050
2,05
72
Max. pressure
bar
p.s.i.
13
189
Nr. of stages
1
Sound level (dB(A))
*
70
Voltage / Frequency (Volt / Hz)
400/50
Connection (G)
3/4"
Controller
DNAir2
Type motor
Electric
Energy efficiency
IE3
Gross weight (kg)
468
Net weight (kg)
443
Packaging dimensions LxWxH (mm)
1650x960 x1350
Net Dimensions LxWxH (mm)
1510x730x1085
*Sound pressure level measurement carried out at a distance of 7 metres.

Download

catalogo powersystem
Catalogue
download powersystem download powersystem
dati tecnici powersystem
Technical data
download powersystem download powersystem
