home fini home fini Products home fini Rotary screw compressors home fini NOBEL 45E-08 PM

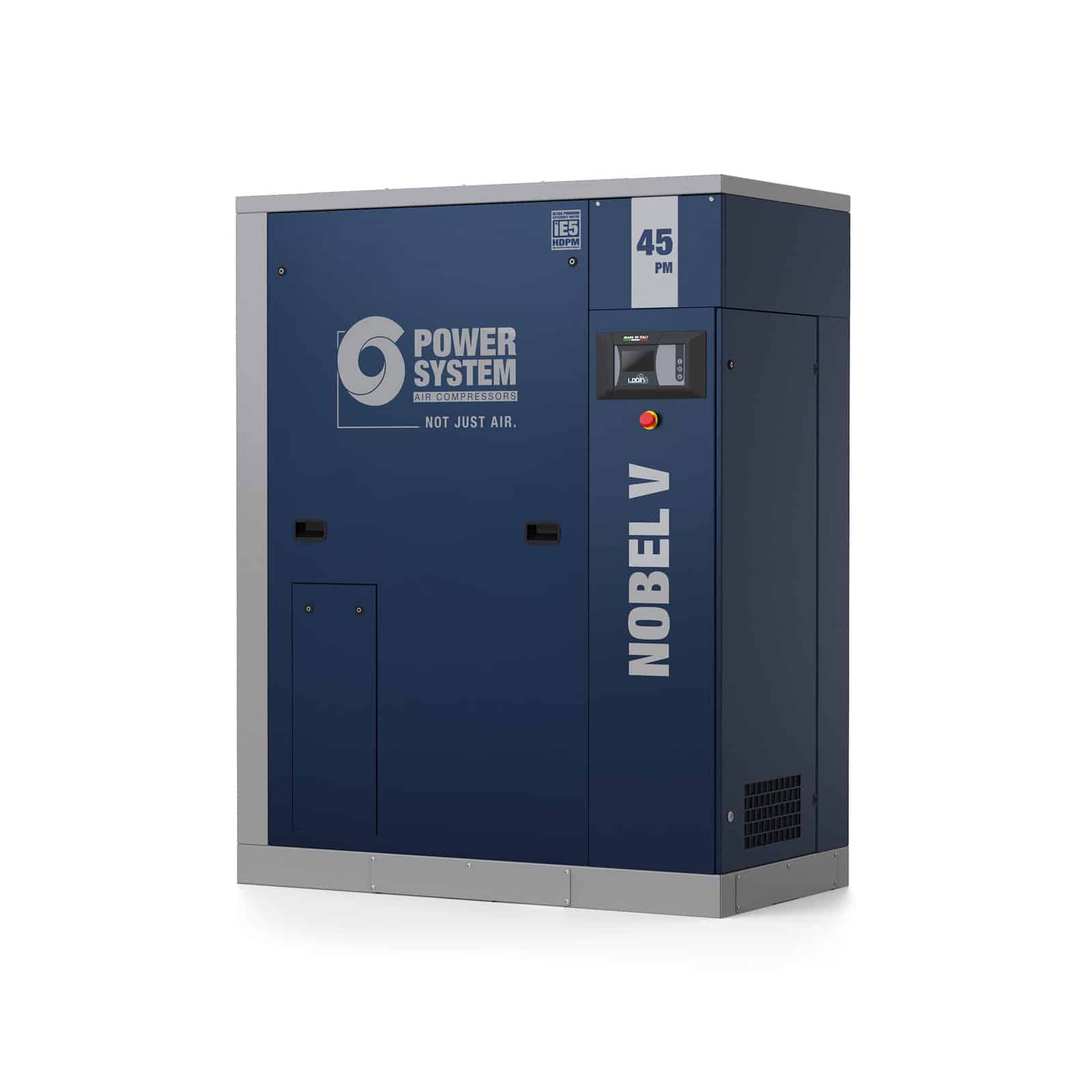

NOBEL 45E-08 PM
Screw compressor with direct drive transmission and permanent magnet motor with inverter.

Permanent magnet
Thermostatic valve
LOGIN controller

Lubricated screw compressor with coaxial transmission, permanent magnet motor and inverter speed control. Modern and versatile LOGIN electronic controller. Compact and silent

lubrificazione power system
Lubrication
Lubricated
aria-resa power system
Air outflow
1570 / 8800 l/min.
pressione-max power system
Max. pressure
8bar / 116psi
potenza power system
Power
45 kW
Contact your Sales representative
NOBEL 45E-08 PM Screw compressor with direct drive transmission and permanent magnet motor with inverter.
NOBEL 45E-08 PM Screw compressor with direct drive transmission and permanent magnet motor with inverter. dettaglio

Technical data

NOBEL 45E-08 PM
Product code
V60KM97PWSA87
Lubrication
Lubricated
Air-end
FS270
Air receiver (l)
-
Power (kW)
45
Air outflow
l/min.
m3/min.
c.f.m.
1570 / 8800
1.57 / 8.8
55 / 311
Max. pressure
bar
p.s.i.
8
116
Nr. of stages
1
Sound level (dB(A))
*
72
Voltage / Frequency (Volt / Hz)
400/50
Connection (G)
1 - 1/2"
Controller
LOGIN
Type motor
Permanent magnet electric motor
Energy efficiency
IE5
Gross weight (kg)
1003
Net weight (kg)
928
Packaging dimensions LxWxH (mm)
1800x1200x1810
Net Dimensions LxWxH (mm)
1620x1030x1560
*Sound pressure level measurement carried out at a distance of 7 metres.

Download

catalogo powersystem
Catalogue
download powersystem download powersystem
dati tecnici powersystem
Technical data
download powersystem download powersystem
