NOBEL 90-13
Screw compressor with direct drive transmission.

IE4
High pressure
LOGIN controller

Lubricated screw compressor with coaxial transmission. Modern and versatile LOGIN electronic controller. Compact and silent

lubrificazione power system
Lubrication
Lubricated
aria-resa power system
Air outflow
10400 l/min.
pressione-max power system
Max. pressure
13bar / 189psi
potenza power system
Power
90 kW

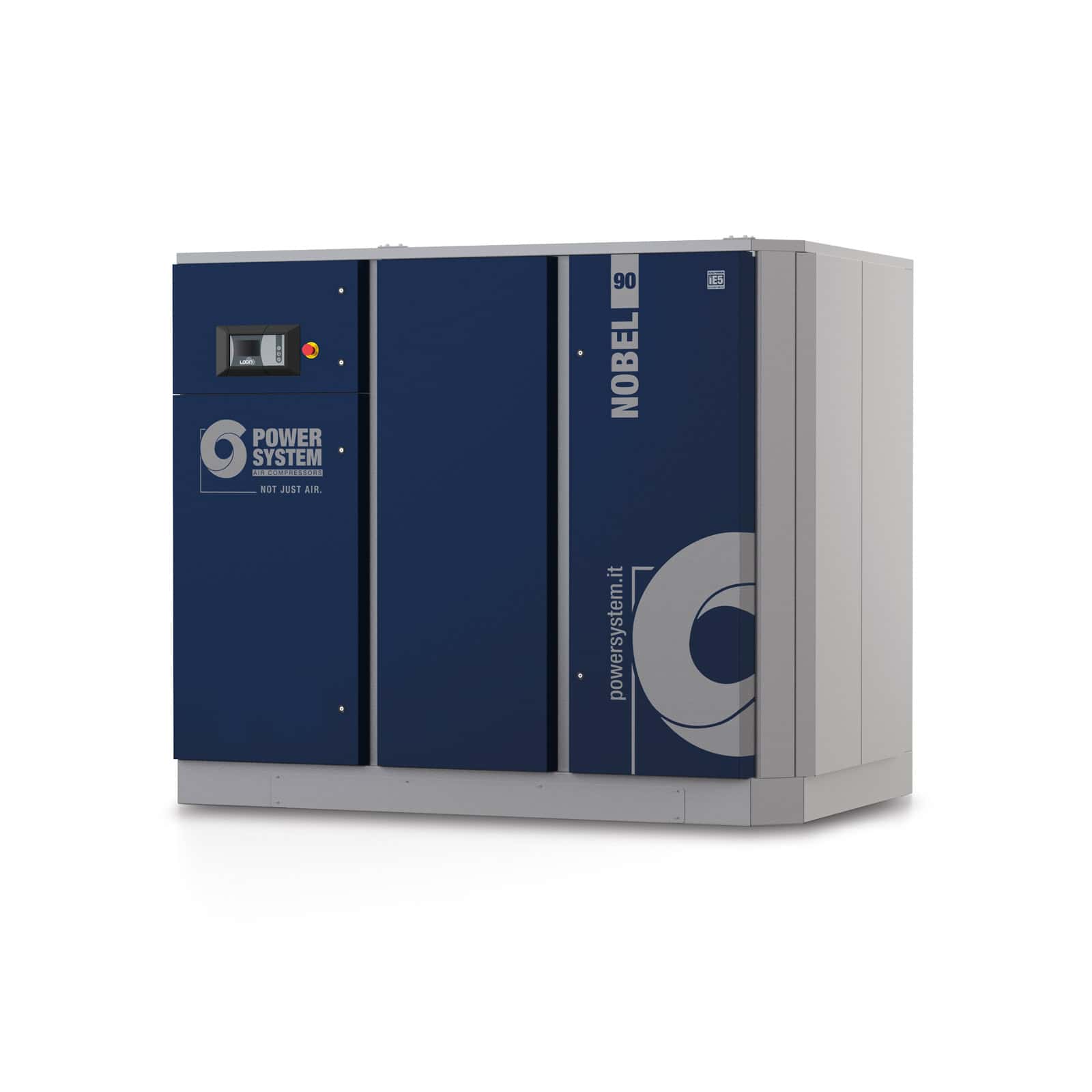

NOBEL 90-13 Screw compressor with direct drive transmission.
NOBEL 90-13 Screw compressor with direct drive transmission. dettaglio

Technical data

NOBEL 90-13
Product code
V60MS92PWSA87
Lubrication
Lubricated
Air-end
FS300
Air receiver (l)
-
Power (kW)
90
Air outflow
l/min.
m3/min.
c.f.m.
10400
10,4
367
Max. pressure
bar
p.s.i.
13
189
Nr. of stages
1
Sound level (dB(A))
*
67
Voltage / Frequency (Volt / Hz)
400/50
Connection (G)
2''
Controller
LOGIN
Type motor
Electric
Energy efficiency
IE4
Gross weight (kg)
3125
Net weight (kg)
2927
Packaging dimensions LxWxH (mm)
2560x1660x2230
Net Dimensions LxWxH (mm)
2330x1460x1980
*Sound pressure level measurement carried out at a distance of 7 metres.

Download

catalogo powersystem
Catalogue
download powersystem download powersystem
dati tecnici powersystem
Technical data
download powersystem download powersystem

Maybe it may also interest you

Variable speed
IE4
LOGIN controller
NOBEL 2S 90-10 DV Highly efficient compressor with two-stage air-end, with direct drive transmission and inverter.
NOBEL 2S 90-10 DV

Highly efficient compressor with two-stage air-end, with direct drive transmission and inverter.

icona power system
Power:
90 kW
icona power system
Air outflow:
5610 / 17000 l/min.
icona power system
Max. pressure:
10 bar
Variable speed
IE4
LOGIN controller
NOBEL 2S 90-08 DV Highly efficient compressor with two-stage air-end, with direct drive transmission and inverter.
NOBEL 2S 90-08 DV

Highly efficient compressor with two-stage air-end, with direct drive transmission and inverter.

icona power system
Power:
90 kW
icona power system
Air outflow:
6303 / 19100 l/min.
icona power system
Max. pressure:
8 bar
Variable speed
IE4
LOGIN controller
NOBEL 2S 90-07 DV Highly efficient compressor with two-stage air-end, with direct drive transmission and inverter.
NOBEL 2S 90-07 DV

Highly efficient compressor with two-stage air-end, with direct drive transmission and inverter.

icona power system
Power:
90 kW
icona power system
Air outflow:
6336 / 19200 l/min.
icona power system
Max. pressure:
7 bar
Permanent magnet
Thermostatic valve
LOGIN controller

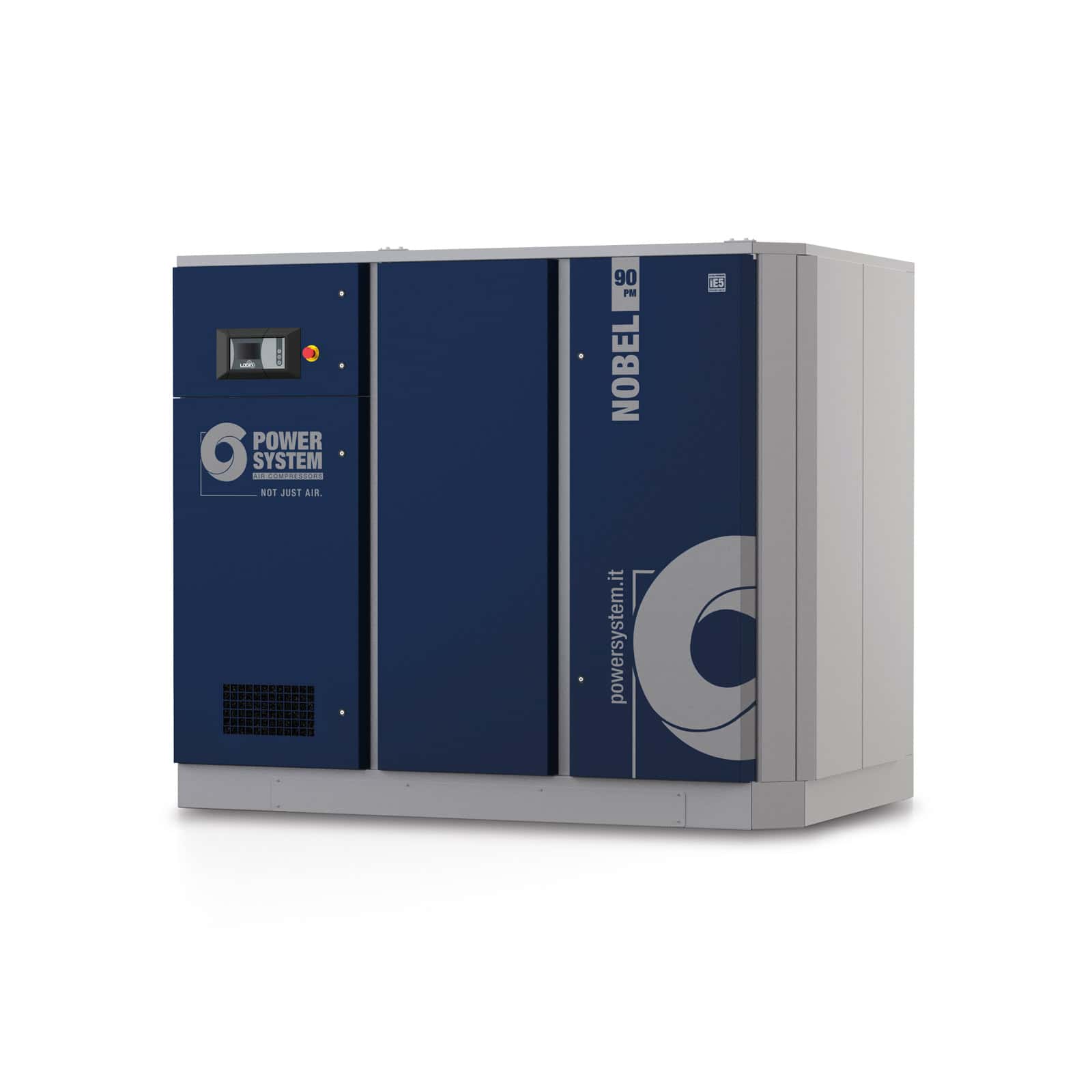

NOBEL 90-13 PM Screw compressor with direct drive transmission and permanent magnet motor with inverter.
