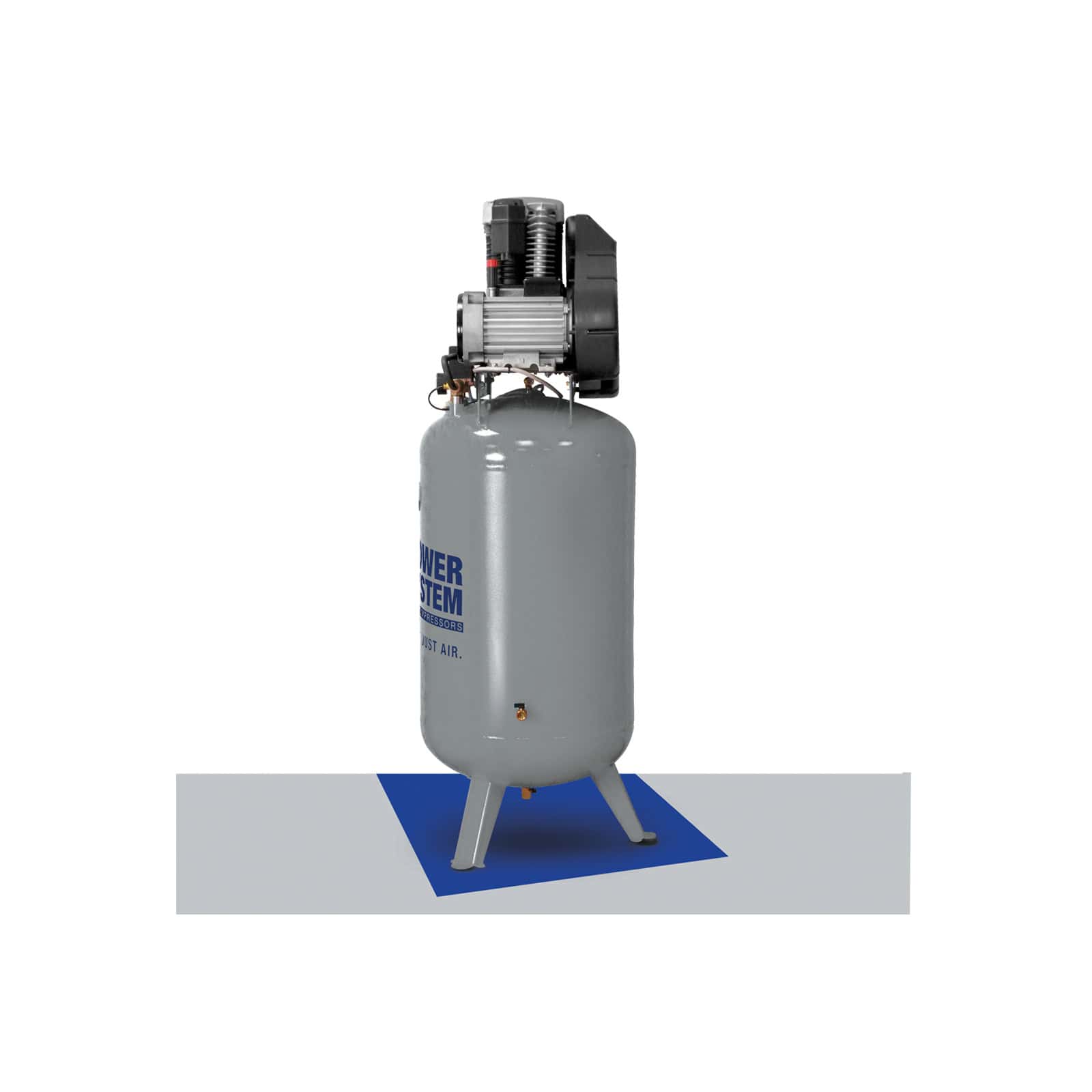

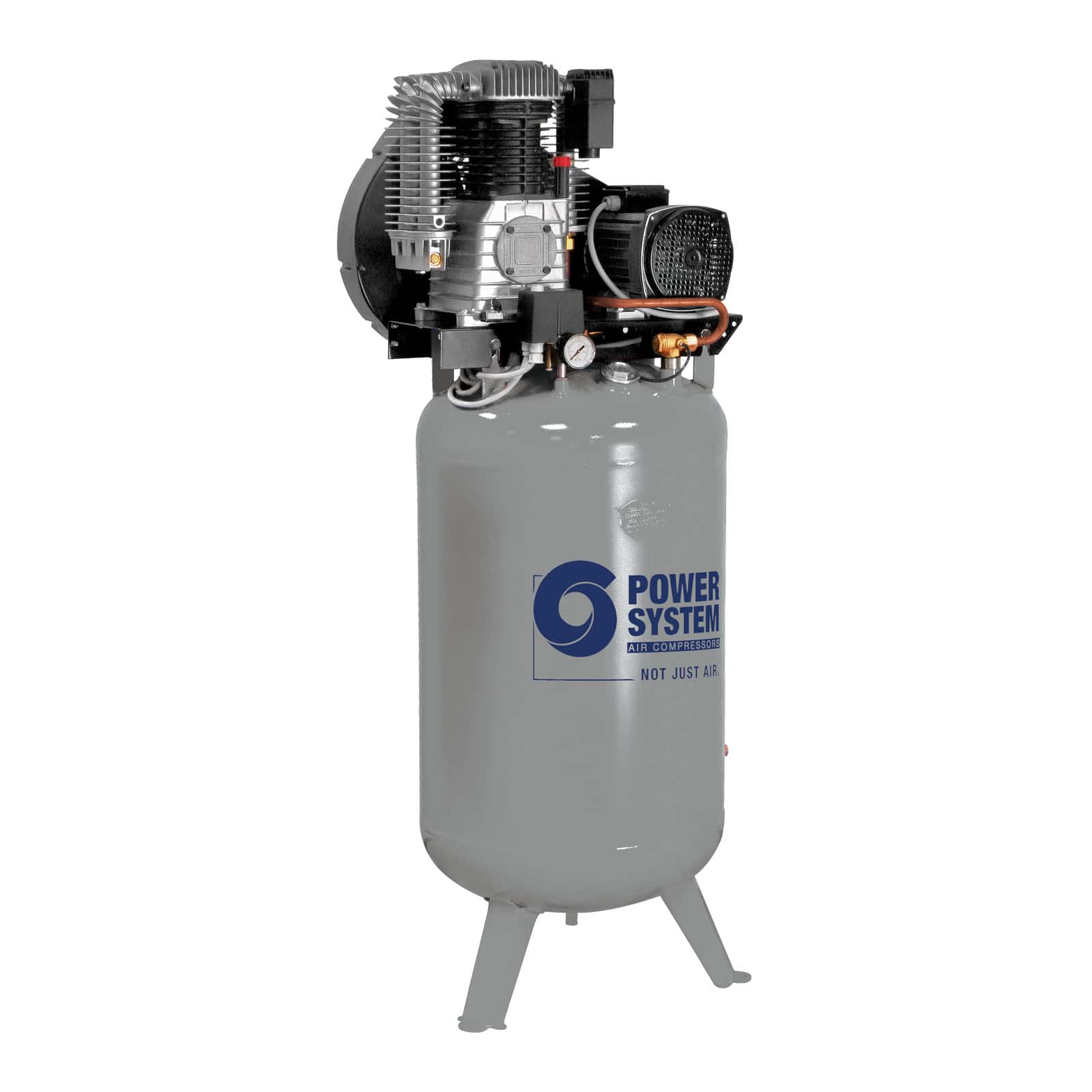

PS30/270 FTV7,5
Two-stage belt driven vertical compressor, the same air reserve in half the space.

Vertical tank
Fixed
Large air stock

Two stage vertical belt driven compressor useful for people with problems of space, suitable for all applications requiring high performance. Equipped with a highly efficient 7.5 hp pumping unit, with cast iron cylinders for long life and robust belt guard protecting moving parts. The space-saving 270-litre vertical tank is equipped with three sturdy feet with anti-vibration mounts for greater stability in use.

plus fini
Read more
lubrificazione power system
Lubrication
Lubricated
serbatoio power system
Air receiver
270 l
pressione-max power system
Max. pressure
11 bar
potenza power system
Power
7,5 Hp
rumorosita power system
Sound level
Medium
allestimento power system
Equipment
Resting feet
Contact your Sales representative
PS30/270 FTV7,5 Two-stage belt driven vertical compressor, the same air reserve in half the space.
PS30/270 FTV7,5 Two-stage belt driven vertical compressor, the same air reserve in half the space. dettaglio

Technical data

PS30/270 FTV7,5
Product code
SLNY801PWS140
Lubrication
Lubricated
Compressor pump
PS30
Air receiver (l)
270
Power
Hp
kW
7,5
5,5
Max. pressure
bar
p.s.i.
11
160
Nr. of cylinders
2
Air displacement
l/min.
c.f.m.
872
30,7
R.P.M.
1200
Voltage / Frequency (Volt / Hz)
400/50
Type motor
Electric
Gross weight
kg
lb
190
418,9
Packaging dimensions LxWxH (mm)
860x850x2000
EAN code
8016738793253

Download

catalogo powersystem
Catalogue
download powersystem download powersystem
dati tecnici powersystem
Technical data
download powersystem download powersystem
