SILBOX 2 PS28/270 FT5,5 SD
Professional silenced two-stage belt driven compressor, complete with tank.

Very quiet
Star delta starter
Large air stock

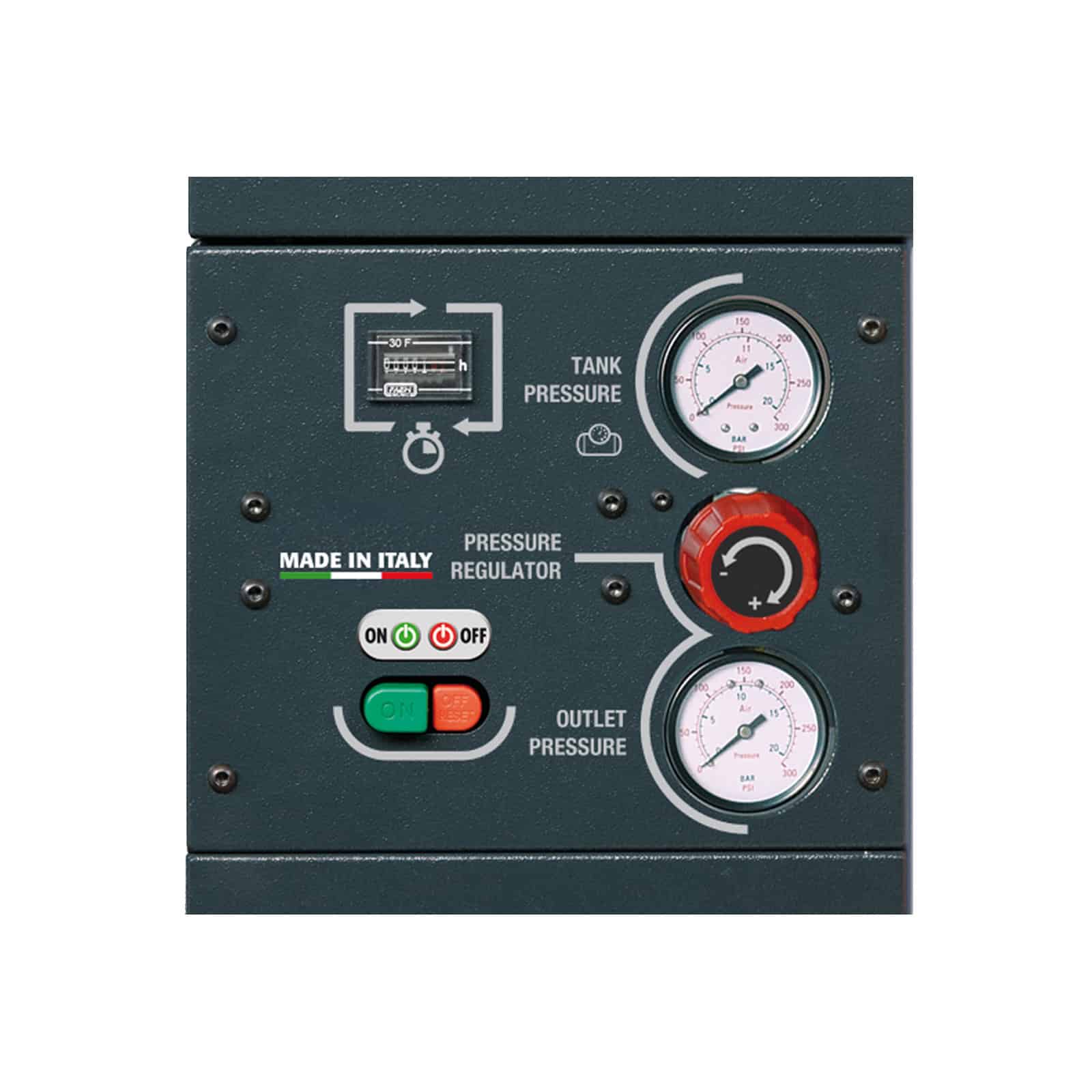

Professional silenced compressor, with the lowest noise level in its class, designed to solve the problem of noise in work environments. Compact design with 270 litre tank for a small footprint. The powerful 5.5 hp pumping unit guarantees the highest level of efficiency and reliability. It is also equipped with an additional intake silencer, a belt tensioning slide that adjusts belt tension and facilitates replacement, and a forced fan for better cooling. The control panel with star-delta starter control unit is positioned for easy reading and operation. The opening front door allows easy maintenance.

plus fini
Read more
lubrificazione power system
Lubrication
Lubricated
serbatoio power system
Air receiver
270 l
pressione-max power system
Max. pressure
11 bar
potenza power system
Power
5,5 Hp
rumorosita power system
Sound level
Low
allestimento power system
Equipment
Resting feet
SILBOX 2 PS28/270 FT5,5 SD Professional silenced two-stage belt driven compressor, complete with tank.
SILBOX 2 PS28/270 FT5,5 SD Professional silenced two-stage belt driven compressor, complete with tank. dettaglio
SILBOX 2 PS28/270 FT5,5 SD Professional silenced two-stage belt driven compressor, complete with tank. altre applicazioni

Technical data

SILBOX 2 PS28/270 FT5,5 SD
Product code
SHNT705PWS162
Lubrication
Lubricated
Compressor pump
PS28
Air receiver (l)
270
Power
Hp
kW
5,5
4
Max. pressure
bar
p.s.i.
11
160
Sound level (dB(A))
*
68
Nr. of cylinders
2
Air displacement
l/min.
c.f.m.
662
23,4
R.P.M.
1290
Voltage / Frequency (Volt / Hz)
400/50
Type motor
Electric
Gross weight
kg
lb
264
582
Packaging dimensions LxWxH (mm)
1550x765x1505
EAN code
8016738793475
*Sound pressure level measurement carried out at a distance of 7 metres.

Download

catalogo powersystem
Catalogue
download powersystem download powersystem
dati tecnici powersystem
Technical data
download powersystem download powersystem
