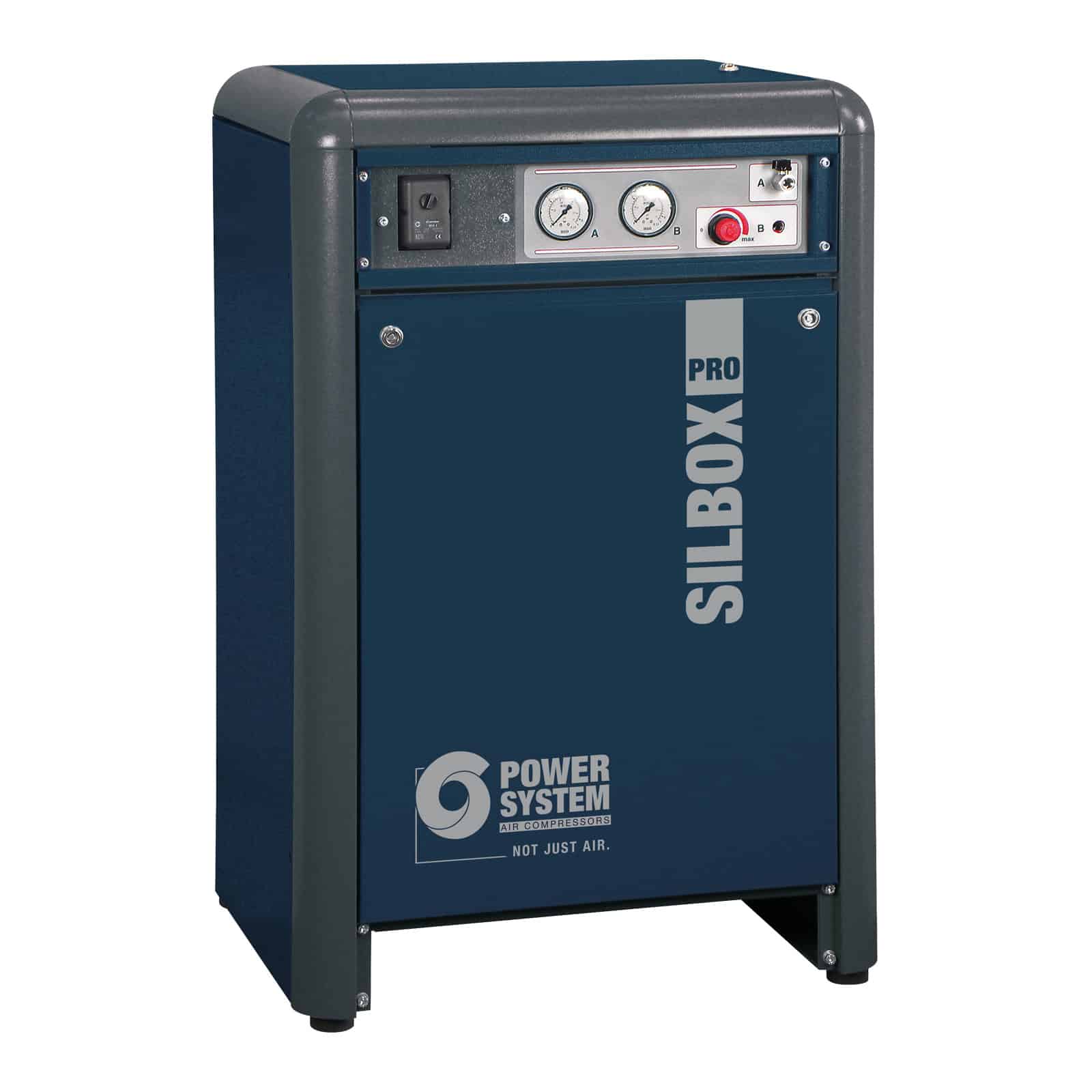

SILBOX-PRO 17 T3
Professional silenced two-stage belt driven compressor, compact and robust.

Very quiet
Three-phase

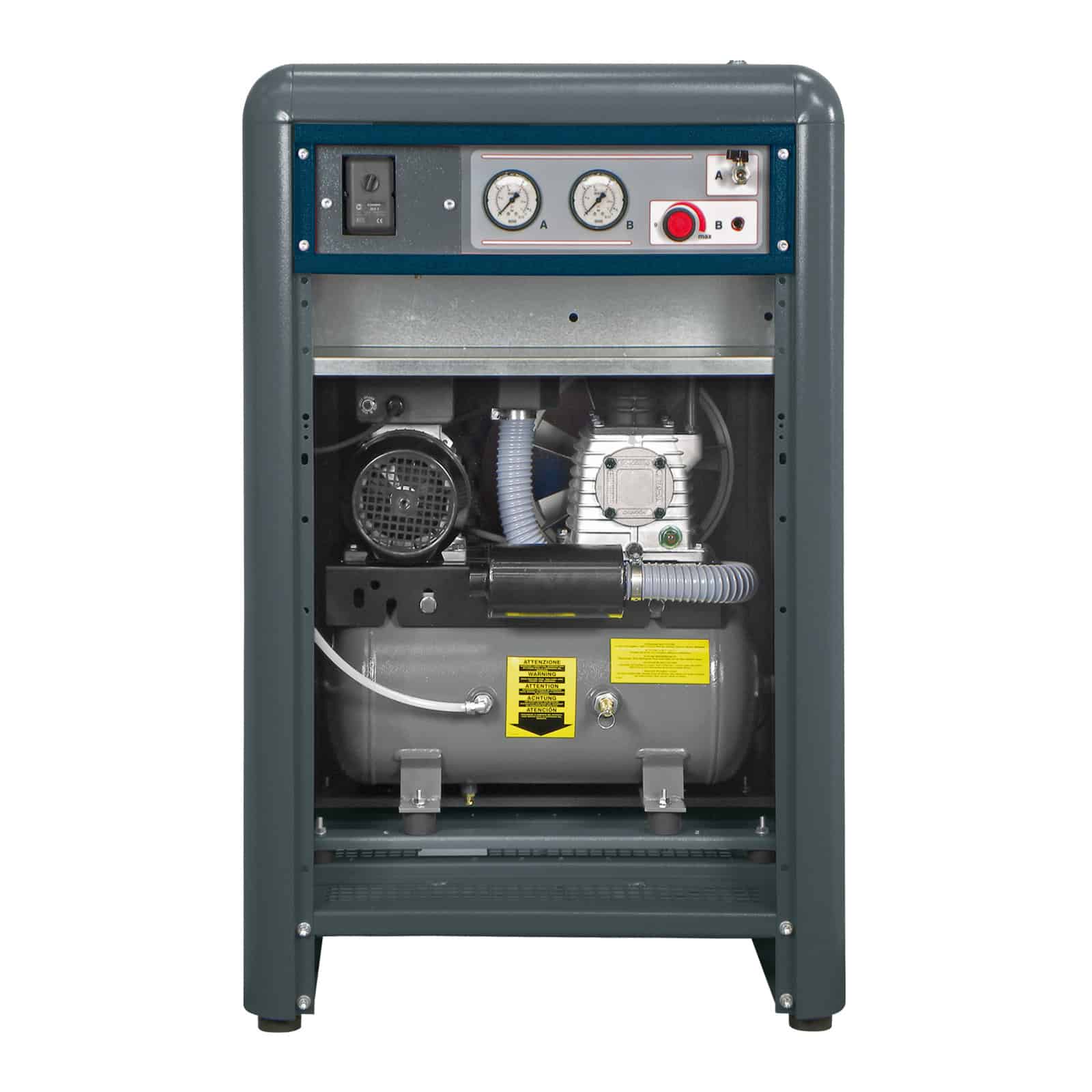

Compact and robust professional silenced compressor with a powerful, highly reliable 3 hp pumping unit. Suitable to be placed close to the application because it is very quiet. All controls are centralised in the control panel. It is also equipped with an additional intake silencer and a built-in 24-litre tank.

plus fini
Read more
lubrificazione power system
Lubrication
Lubricated
serbatoio power system
Air receiver
24 l
pressione-max power system
Max. pressure
10 bar
potenza power system
Power
3 Hp
rumorosita power system
Sound level
Low
allestimento power system
Equipment
Floor mounted
Contact your Sales representative
SILBOX-PRO 17 T3 Professional silenced two-stage belt driven compressor, compact and robust.
SILBOX-PRO 17 T3 Professional silenced two-stage belt driven compressor, compact and robust. dettaglio

Technical data

SILBOX-PRO 17 T3
Product code
SZOM541PWS175
Lubrication
Lubricated
Compressor pump
PS17
Air receiver (l)
24
Power
Hp
kW
3
2,2
Max. pressure
bar
p.s.i.
10
145
Sound level (dB(A))
*
63
Nr. of cylinders
2
Air displacement
l/min.
c.f.m.
400
14,1
R.P.M.
1250
Voltage / Frequency (Volt / Hz)
400/50
Type motor
Electric
Gross weight
kg
lb
121
266,8
Packaging dimensions LxWxH (mm)
720x640x1250
EAN code
8016738793604
*Sound pressure level measurement carried out at a distance of 7 metres.

Download

catalogo powersystem
Catalogue
download powersystem download powersystem
dati tecnici powersystem
Technical data
download powersystem download powersystem
