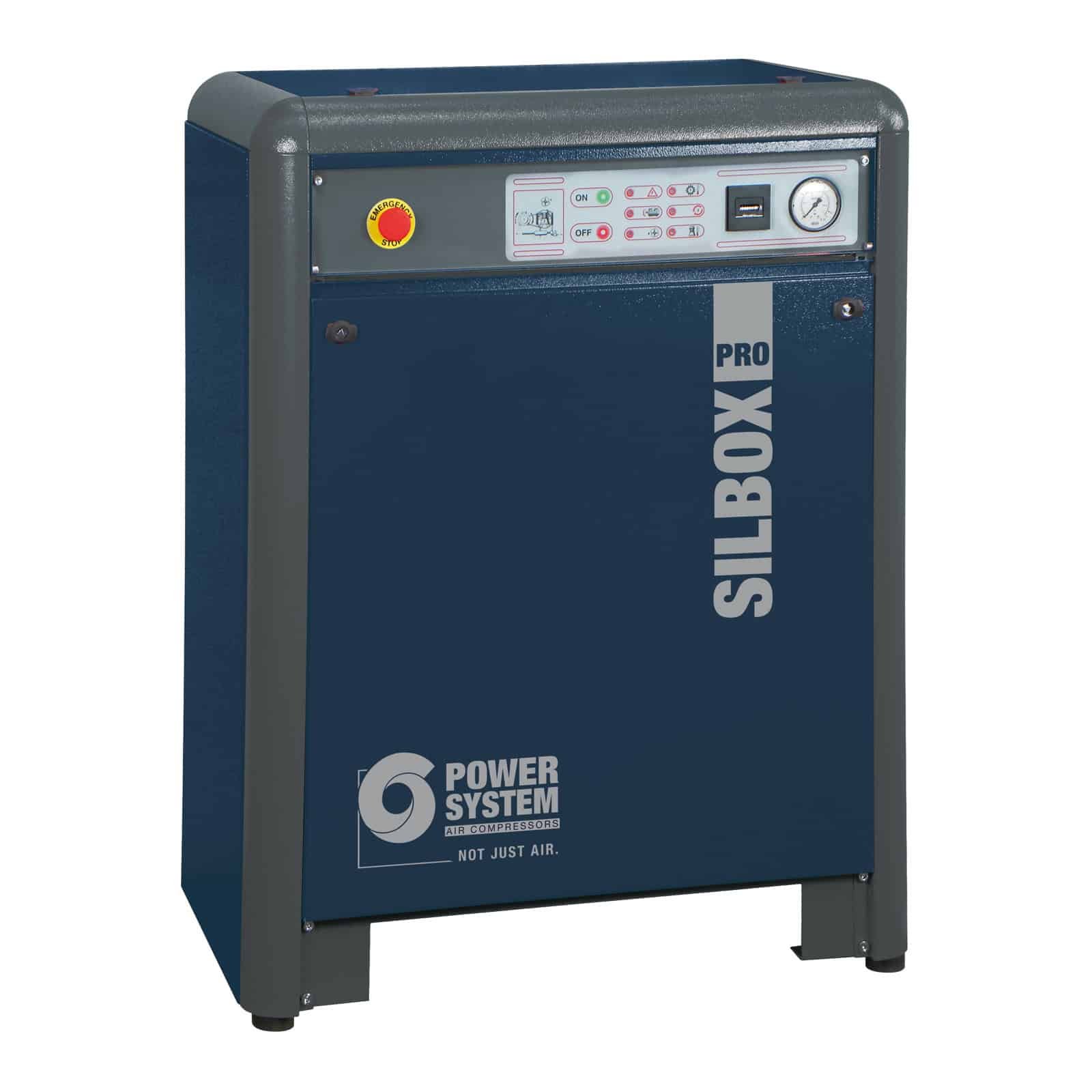

SILBOX-PRO 30 T5,5
Professional silenced two-stage belt driven compressor, compact and robust.

Very quiet
Three-phase

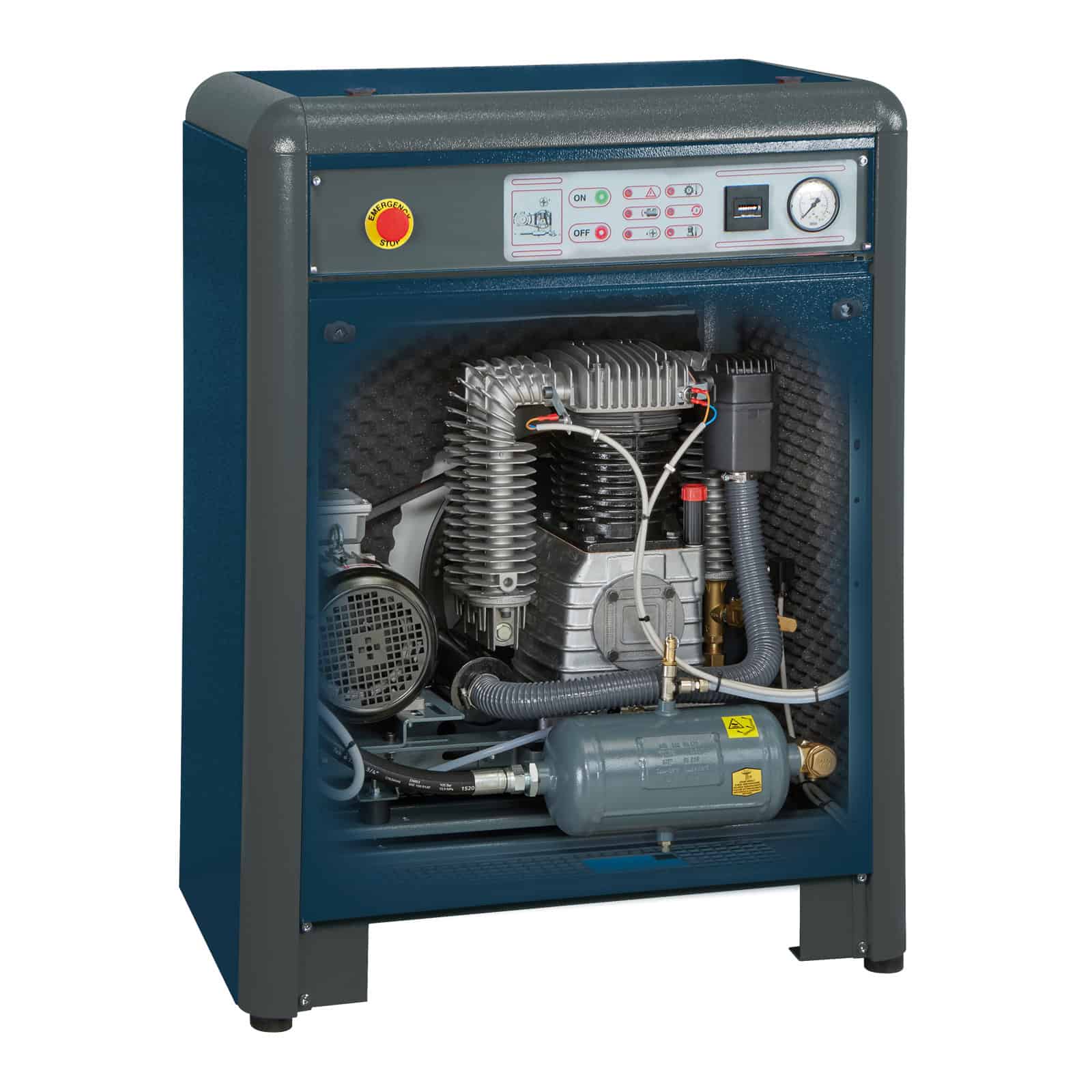

Compact and robust professional silenced compressor with a powerful, highly reliable 5.5 hp pumping unit. Suitable to be placed close to the application because it is very quiet. Equipped with an electronic card for self-diagnosis and control. It is also equipped with an additional intake silencer, a forced fan for better cooling and a pulsation dampening tank with condensate drain.

plus fini
Read more
lubrificazione power system
Lubrication
Lubricated
serbatoio power system
Air receiver
3 l
pressione-max power system
Max. pressure
11 bar
potenza power system
Power
5,5 Hp
rumorosita power system
Sound level
Low
allestimento power system
Equipment
Floor mounted
Contact your Sales representative
SILBOX-PRO 30 T5,5 Professional silenced two-stage belt driven compressor, compact and robust.
SILBOX-PRO 30 T5,5 Professional silenced two-stage belt driven compressor, compact and robust. dettaglio
SILBOX-PRO 30 T5,5 Professional silenced two-stage belt driven compressor, compact and robust. altre applicazioni

Technical data

SILBOX-PRO 30 T5,5
Product code
SLOM701PWS066
Lubrication
Lubricated
Compressor pump
PS30
Air receiver (l)
3
Power
Hp
kW
5,5
4
Max. pressure
bar
p.s.i.
11
160
Sound level (dB(A))
*
65
Nr. of cylinders
2
Air displacement
l/min.
c.f.m.
727
25,6
R.P.M.
1000
Voltage / Frequency (Volt / Hz)
400/50
Type motor
Electric
Gross weight
kg
lb
178
392,4
Packaging dimensions LxWxH (mm)
870x640x1250
EAN code
8016738759358
*Sound pressure level measurement carried out at a distance of 7 metres.

Download

catalogo powersystem
Catalogue
download powersystem download powersystem
dati tecnici powersystem
Technical data
download powersystem download powersystem
