JUNIOR 7.5-10-500
Compact, direct drive transmission screw compressor, complete with tank.

ETMII controller

Three-phase lubricated screw compressor with coaxial transmission for efficiency and reliability. Particularly compact and easy to install and maintain complete with 500 litre storage tank

lubrificazione power system
Lubrication
Lubricated
aria-resa power system
Air outflow
1050 l/min.
pressione-max power system
Max. pressure
10bar / 145psi
potenza power system
Power
7,5 kW
Contact your Sales representative
JUNIOR 7.5-10-500 Compact, direct drive transmission screw compressor, complete with tank.
JUNIOR 7.5-10-500 Compact, direct drive transmission screw compressor, complete with tank. dettaglio

Technical data

JUNIOR 7.5-10-500
Product code
V83PO92PWS080
Lubrication
Lubricated
Air-end
FS26
Air receiver (l)
500
Power (kW)
7,5
Air outflow
l/min.
m3/min.
c.f.m.
1050
1,05
37
Max. pressure
bar
p.s.i.
10
145
Nr. of stages
1
Sound level (dB(A))
*
67
Voltage / Frequency (Volt / Hz)
400/50
Connection (G)
1/2"
Controller
ETMII
Type motor
Electric
Gross weight (kg)
279
Net weight (kg)
239
Packaging dimensions LxWxH (mm)
2070x800x1680
Net Dimensions LxWxH (mm)
2000x600x1450
*Sound pressure level measurement carried out at a distance of 7 metres.

Download

catalogo powersystem
Catalogue
download powersystem download powersystem
dati tecnici powersystem
Technical data
download powersystem download powersystem

Maybe it may also interest you

DNAir1 controller
High pressure
Air dryer

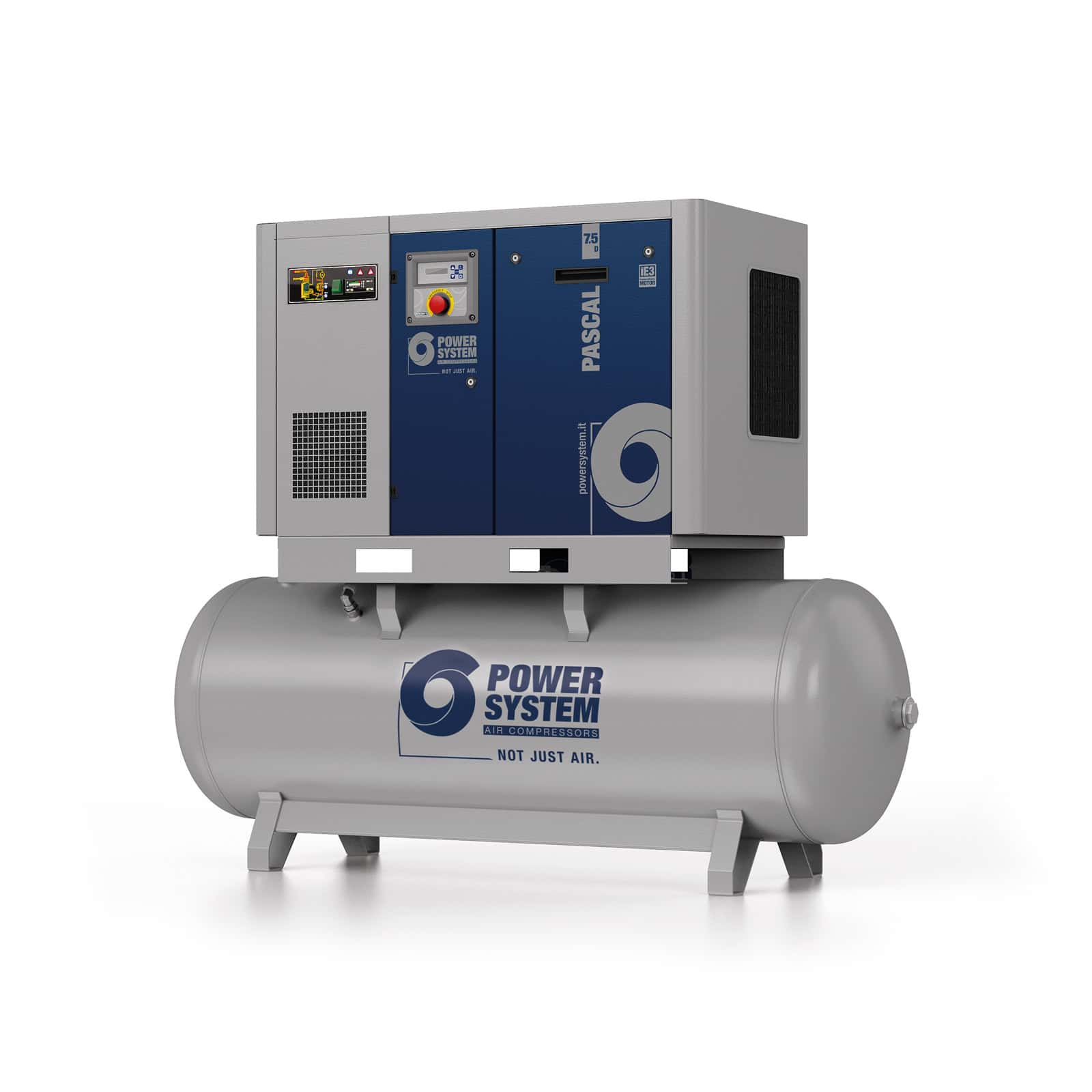

PASCAL 7.5-13-500 D Screw compressor with belt transmission.
PASCAL 7.5-13-500 D

Screw compressor with belt transmission.

icona power system
Power:
7,5 kW
icona power system
Air outflow:
750 l/min.
icona power system
Max. pressure:
13 bar
DNAir1 controller
High pressure
Thermostatic valve

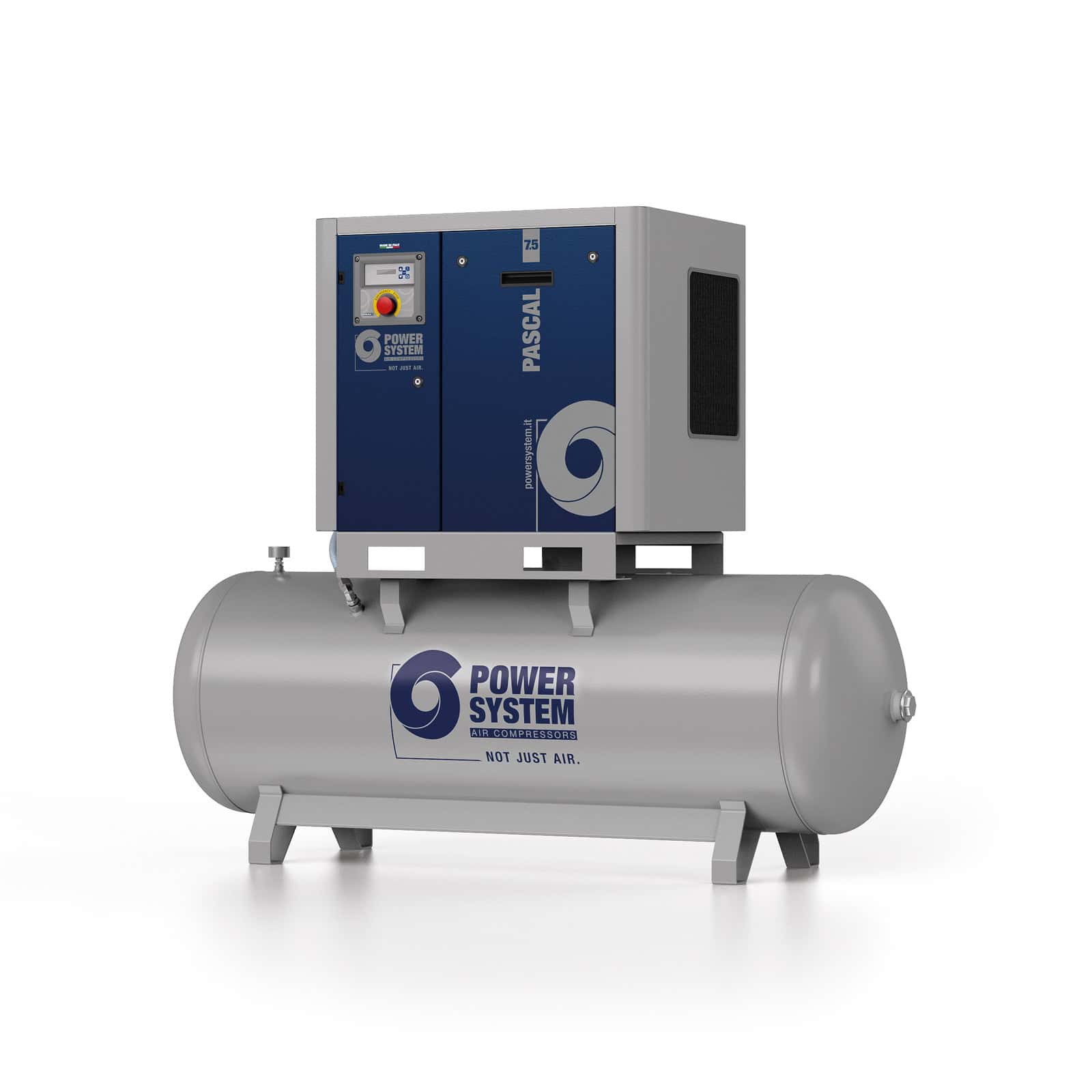

PASCAL 7.5-13-500 Screw compressor with belt transmission.
