PS17/200 CT3
Professional single-stage belt driven compressor, suitable for craftsmen and small industries.

Single stage
With wheels
Three-phase

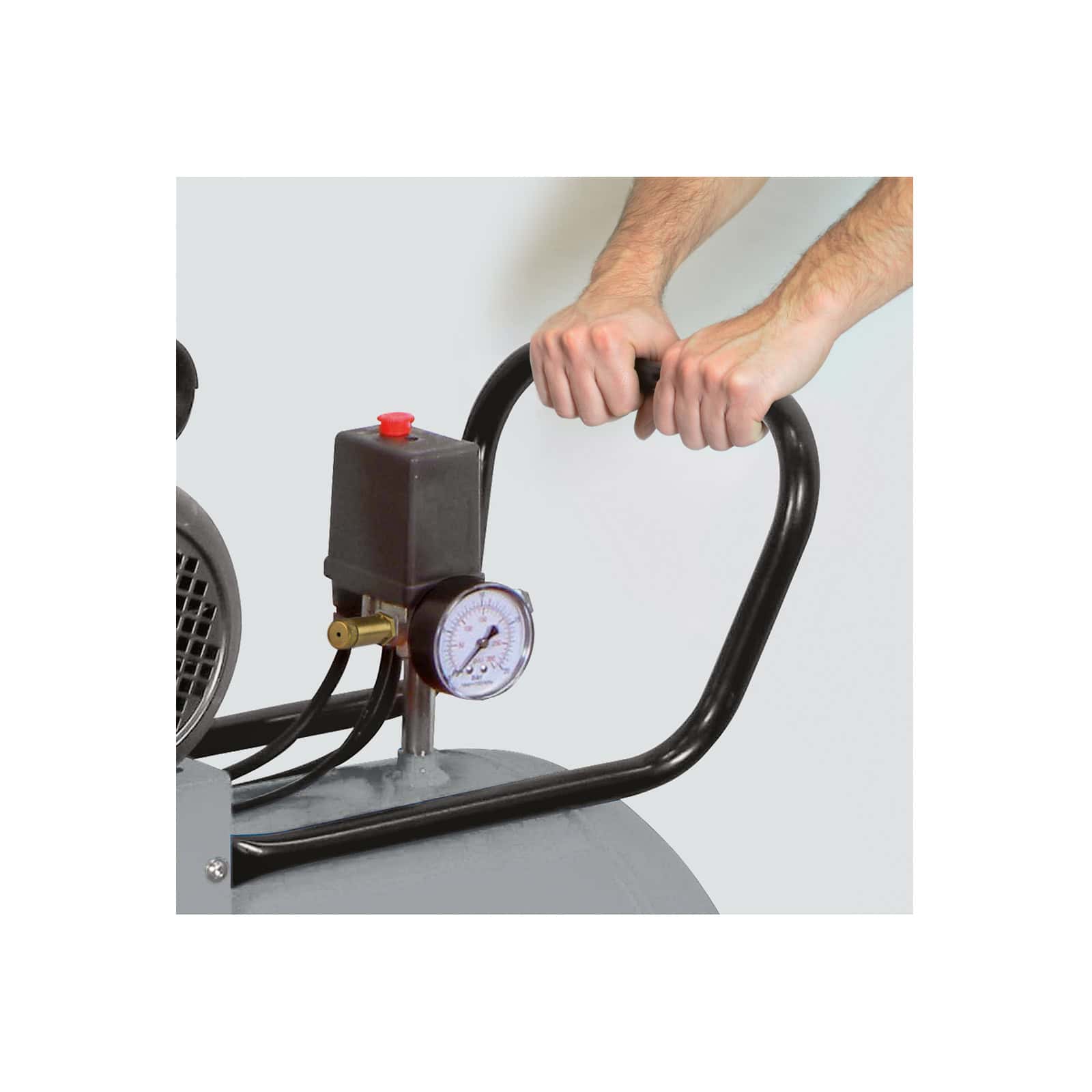

A single-stage three-phase belt driven compressor designed for intensive use, it is equipped with a 3 hp pumping unit with extremely reliable cast iron cylinders and a robust metal belt cover protecting moving parts. Controls located at the front of the machine ensure easy operation. The 200-litre tank for a large air reserve, large wheels, two pivoting wheels and the convenient full-length, angled handle ensure easy transportation.

plus fini
Read more
lubrificazione power system
Lubrication
Lubricated
serbatoio power system
Air receiver
200 l
pressione-max power system
Max. pressure
10 bar
potenza power system
Power
3 Hp
rumorosita power system
Sound level
Medium
allestimento power system
Equipment
With wheels
PS17/200 CT3 Professional single-stage belt driven compressor, suitable for craftsmen and small industries.
PS17/200 CT3 Professional single-stage belt driven compressor, suitable for craftsmen and small industries. dettaglio

Technical data

PS17/200 CT3
Product code
SZLC541PWS109
Lubrication
Lubricated
Compressor pump
PS17
Air receiver (l)
200
Power
Hp
kW
3
2,2
Max. pressure
bar
p.s.i.
10
145
Nr. of cylinders
2
Air displacement
l/min.
c.f.m.
400
14,1
R.P.M.
1250
Voltage / Frequency (Volt / Hz)
400/50
Type motor
Electric
Gross weight
kg
lb
116
255,7
Packaging dimensions LxWxH (mm)
1435x470x1125
EAN code
8016738792942

Download

catalogo powersystem
Catalogue
download powersystem download powersystem
dati tecnici powersystem
Technical data
download powersystem download powersystem
