PS30/270G FT7,5
Professional two-stage belt driven compressor with galvanised tank for high performance.

Galvanized tank
Fixed
Large air stock

Professional two-stage compressor designed for heavy-duty use, high reliability and performance. The 270 litre galvanised tank ensures lasting prevention against corrosion caused by water condensation inside. It is also equipped with an oil drain extension and a filter-cup regulator consisting of a condensate drain and pressure regulator. Four sturdy feet with anti-vibration mounts make it stable in use.

plus fini
Read more
lubrificazione power system
Lubrication
Lubricated
serbatoio power system
Air receiver
270 l
pressione-max power system
Max. pressure
11 bar
potenza power system
Power
7,5 Hp
rumorosita power system
Sound level
Medium
allestimento power system
Equipment
Resting feet
Contact your Sales representative
*The images are for illustrative purposes only
PS30/270G FT7,5 Professional two-stage belt driven compressor with galvanised tank for high performance.
PS30/270G FT7,5 Professional two-stage belt driven compressor with galvanised tank for high performance. dettaglio
PS30/270G FT7,5 Professional two-stage belt driven compressor with galvanised tank for high performance. altre applicazioni

Technical data

PS30/270G FT7,5
Product code
SLNN801PWS232
Lubrication
Lubricated
Compressor pump
PS30
Air receiver (l)
270
Power
Hp
kW
7,5
5,5
Max. pressure
bar
p.s.i.
11
160
Nr. of cylinders
2
Air displacement
l/min.
c.f.m.
872
30,7
R.P.M.
1200
Voltage / Frequency (Volt / Hz)
400/50
Type motor
Electric
Gross weight
kg
lb
171
377
Packaging dimensions LxWxH (mm)
1640x560x1330
EAN code
8016738794717

Download

catalogo powersystem
Catalogue
download powersystem download powersystem
dati tecnici powersystem
Technical data
download powersystem download powersystem

Maybe it may also interest you

Galvanized tank
With wheels
Large air stock
PS25/270G CT4 Professional two-stage belt driven compressor with galvanised tank for high performance.
PS25/270G CT4

Professional two-stage belt driven compressor with galvanised tank for high performance.

icona power system
Power:
4 Hp
icona power system
Air receiver:
270 l
icona power system
Max. pressure:
11 bar
New
Galvanized tank
With wheels
Compact

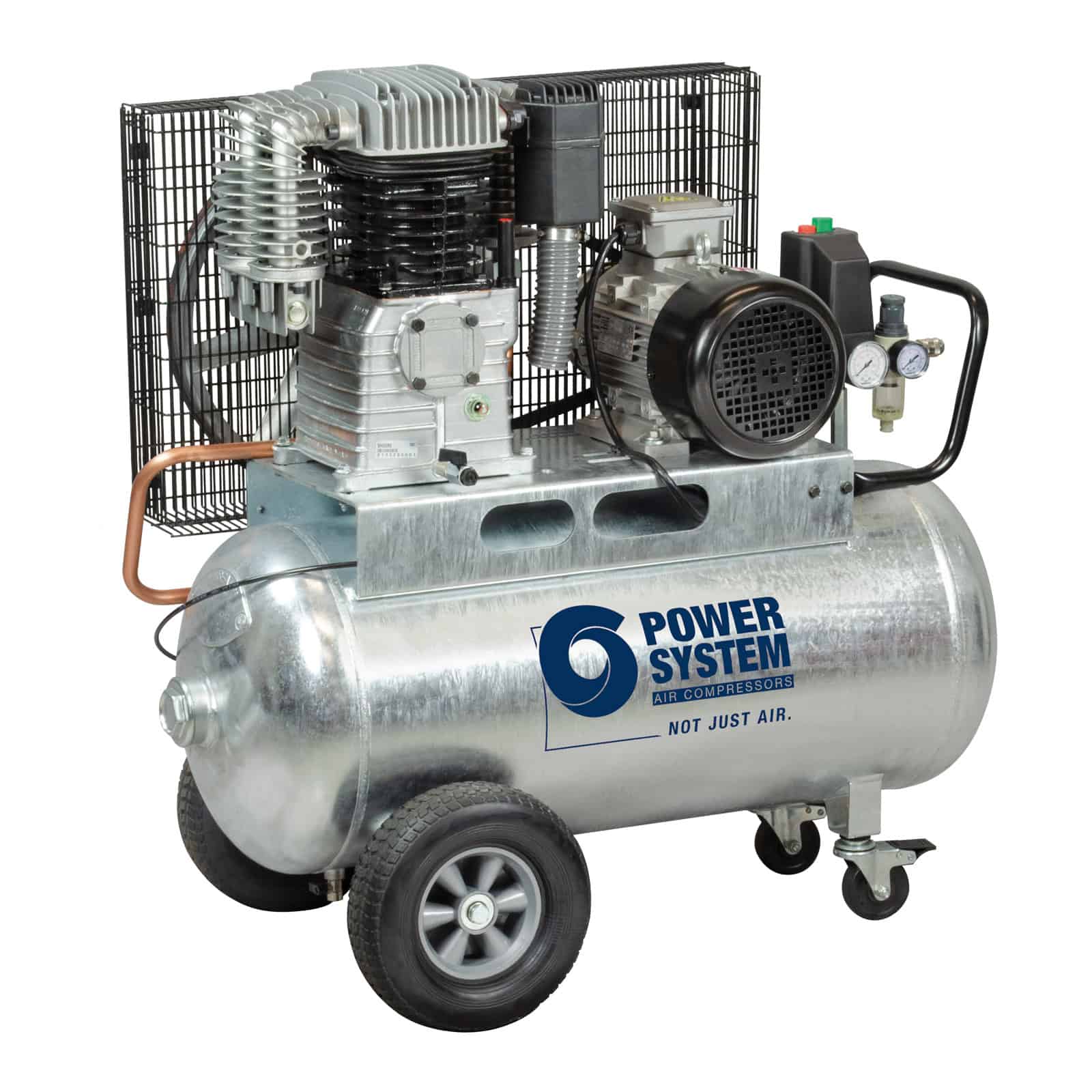

PS28/90G CT5,5 Professional two-stage belt driven compressor with galvanised tank for high performance.
