SILBOX 3 PS50/500 FT10 SD +ESS
Professional silenced two-stage belt driven compressor, complete with tank and dryer.

Very quiet
Star delta starter
Air dryer

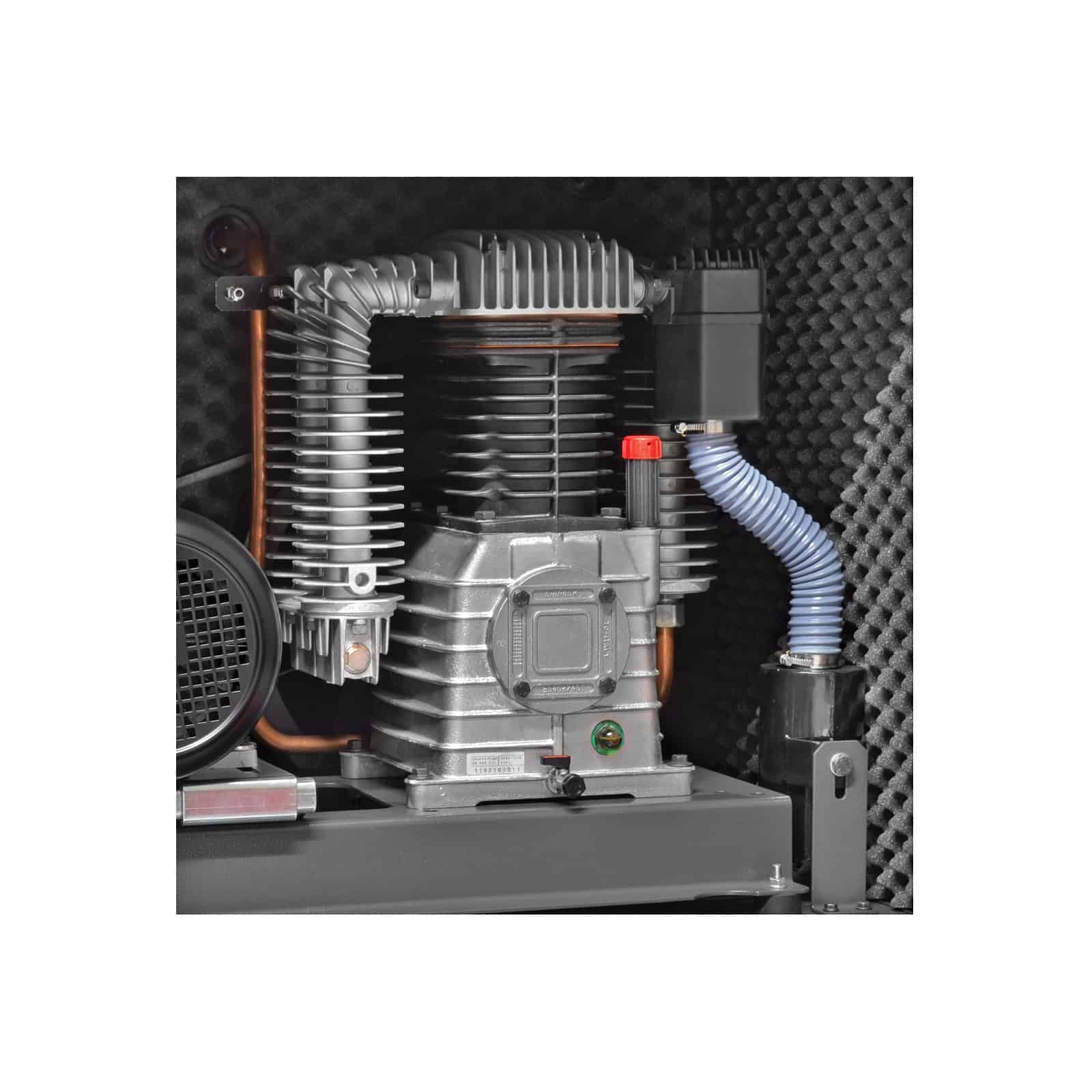

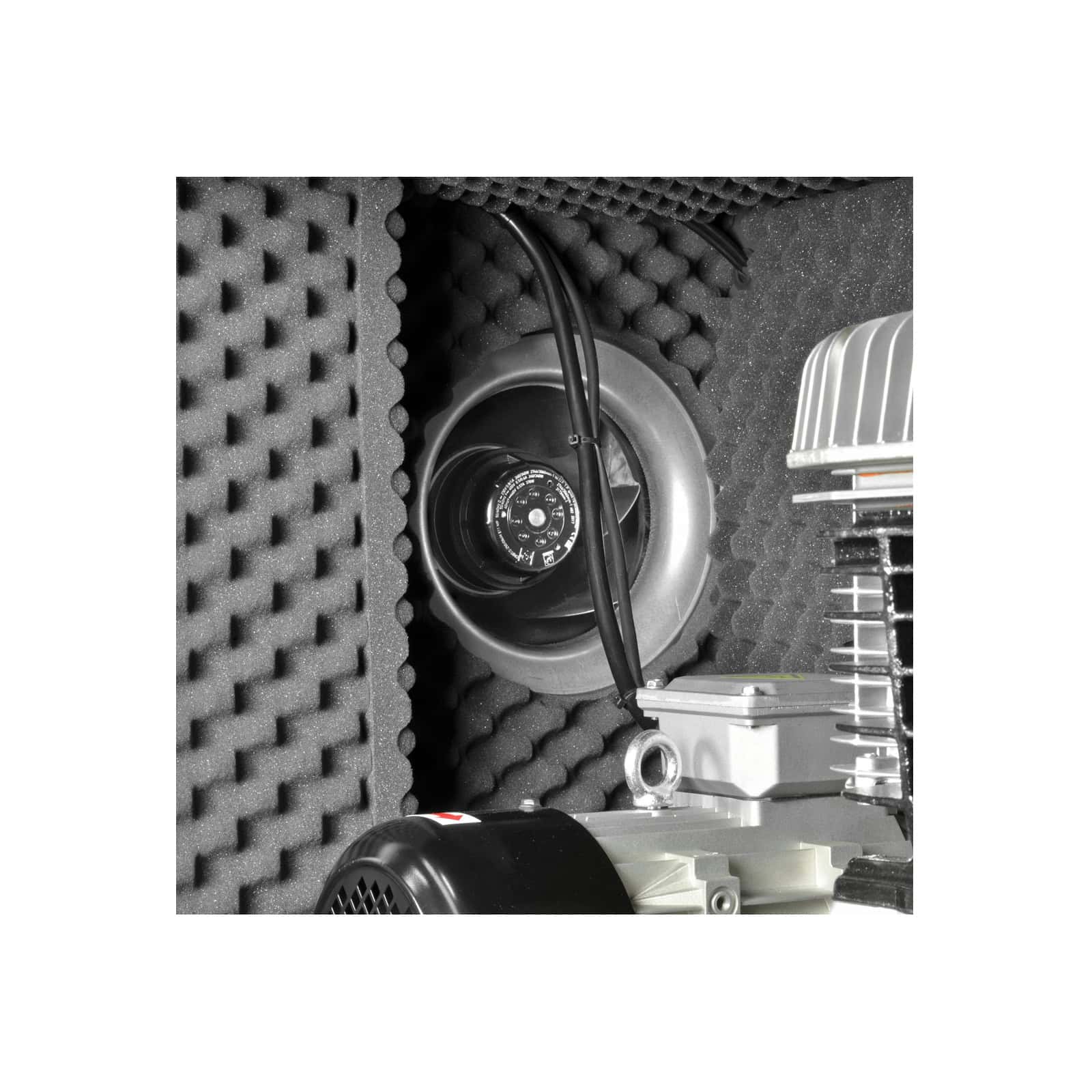

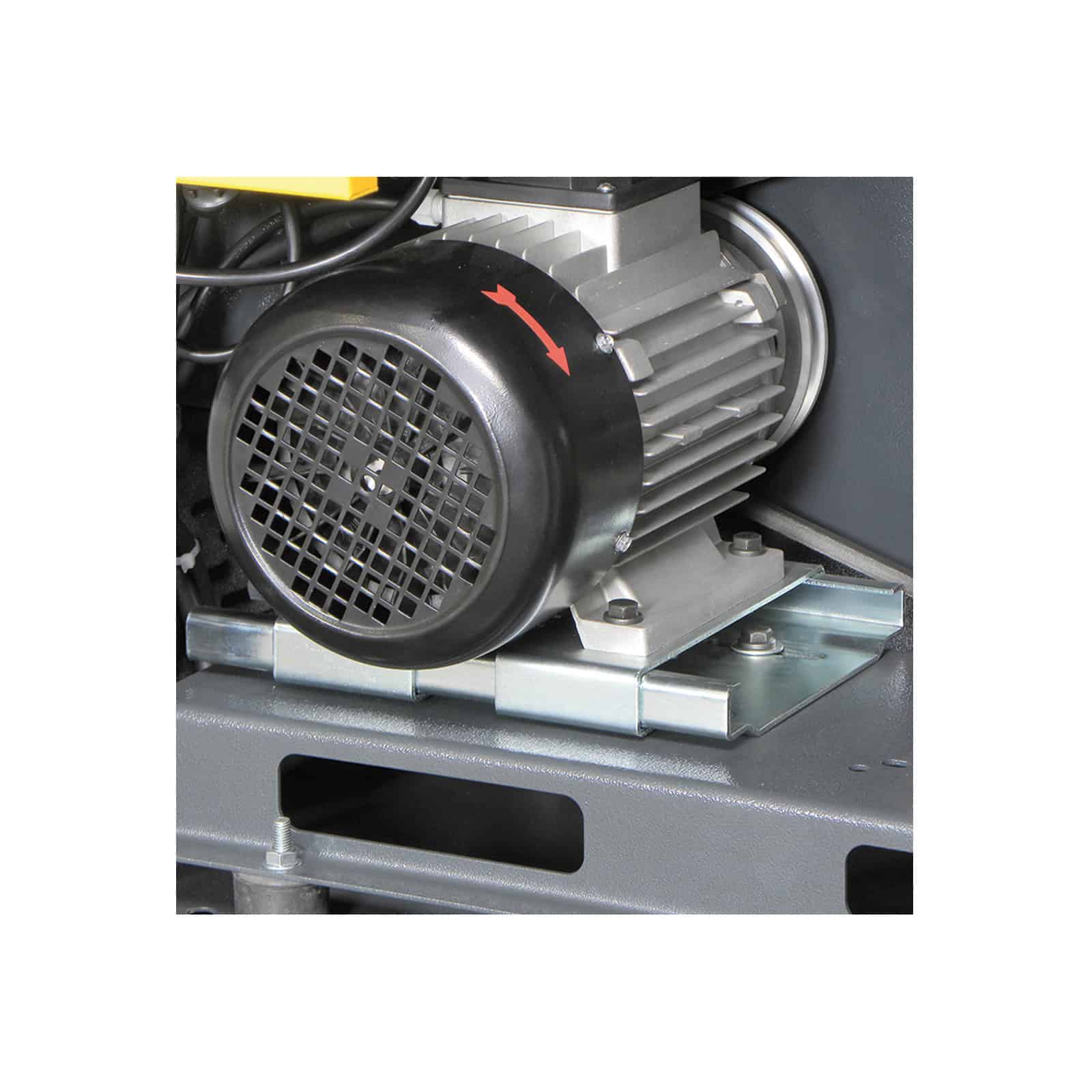

Professional silenced compressor with dryer, with the lowest noise level in its class, designed to solve the problem of noise in work environments. The powerful 10 hp pumping unit guarantees the highest level of efficiency and reliability. It is also equipped with an additional intake silencer, a belt tensioning slide that adjusts belt tension and facilitates replacement, and a forced fan for better cooling. The control panel with star-delta starter control unit is positioned for easy reading and operation. The opening front door allows easy maintenance. Easily transportable thanks to the bar placed between the feet at the base of the 500-litre tank.

plus fini
Read more
lubrificazione power system
Lubrication
Lubricated
serbatoio power system
Air receiver
500 l
pressione-max power system
Max. pressure
11 bar
potenza power system
Power
10 Hp
rumorosita power system
Sound level
Low
allestimento power system
Equipment
Resting feet
SILBOX 3 PS50/500 FT10 SD +ESS Professional silenced two-stage belt driven compressor, complete with tank and dryer.
SILBOX 3 PS50/500 FT10 SD +ESS Professional silenced two-stage belt driven compressor, complete with tank and dryer. dettaglio
SILBOX 3 PS50/500 FT10 SD +ESS Professional silenced two-stage belt driven compressor, complete with tank and dryer. altre applicazioni

Technical data

SILBOX 3 PS50/500 FT10 SD +ESS
Product code
SMTT905PWS309
Lubrication
Lubricated
Compressor pump
PS50
Air receiver (l)
500
Power
Hp
kW
10
7,5
Max. pressure
bar
p.s.i.
11
160
Sound level (dB(A))
*
69
Nr. of cylinders
2
Air displacement
l/min.
c.f.m.
1074
37,8
R.P.M.
1000
Voltage / Frequency (Volt / Hz)
400/50
Type motor
Electric
Gross weight
kg
lb
440
970
Packaging dimensions LxWxH (mm)
2005x970x1660
EAN code
8016738793567
*Sound pressure level measurement carried out at a distance of 7 metres.

Download

catalogo powersystem
Catalogue
download powersystem download powersystem
dati tecnici powersystem
Technical data
download powersystem download powersystem
