SILBOX-PRO 11 M2
Professional silenced two-stage belt driven compressor, compact and robust.

New
Very quiet
Single-phase

Compact and robust professional silenced compressor with a powerful, highly reliable 2 hp pumping unit. Suitable to be placed close to the application because it is very quiet. All controls are centralised in the control panel. It is also equipped with an additional intake silencer and a built-in 24-litre tank.

plus fini
Read more
lubrificazione power system
Lubrication
Lubricated
serbatoio power system
Air receiver
24 l
pressione-max power system
Max. pressure
10 bar
potenza power system
Power
2 Hp
rumorosita power system
Sound level
Low
allestimento power system
Equipment
Floor mounted
SILBOX-PRO 11 M2 Professional silenced two-stage belt driven compressor, compact and robust.
SILBOX-PRO 11 M2 Professional silenced two-stage belt driven compressor, compact and robust. dettaglio

Technical data

SILBOX-PRO 11 M2
Product code
SCOM404PWS063
Lubrication
Lubricated
Compressor pump
PS11
Air receiver (l)
24
Power
Hp
kW
2
1,5
Max. pressure
bar
p.s.i.
10
145
Sound level (dB(A))
*
60
Nr. of cylinders
2
Air displacement
l/min.
c.f.m.
260
9,2
R.P.M.
1180
Voltage / Frequency (Volt / Hz)
230/50
Type motor
Electric
Gross weight
kg
lb
111
244,7
Packaging dimensions LxWxH (mm)
720x640x1250
EAN code
8016738759327
*Sound pressure level measurement carried out at a distance of 7 metres.

Download

catalogo powersystem
Catalogue
download powersystem download powersystem
dati tecnici powersystem
Technical data
download powersystem download powersystem

Maybe it may also interest you

Very quiet
Air dryer
Large air stock

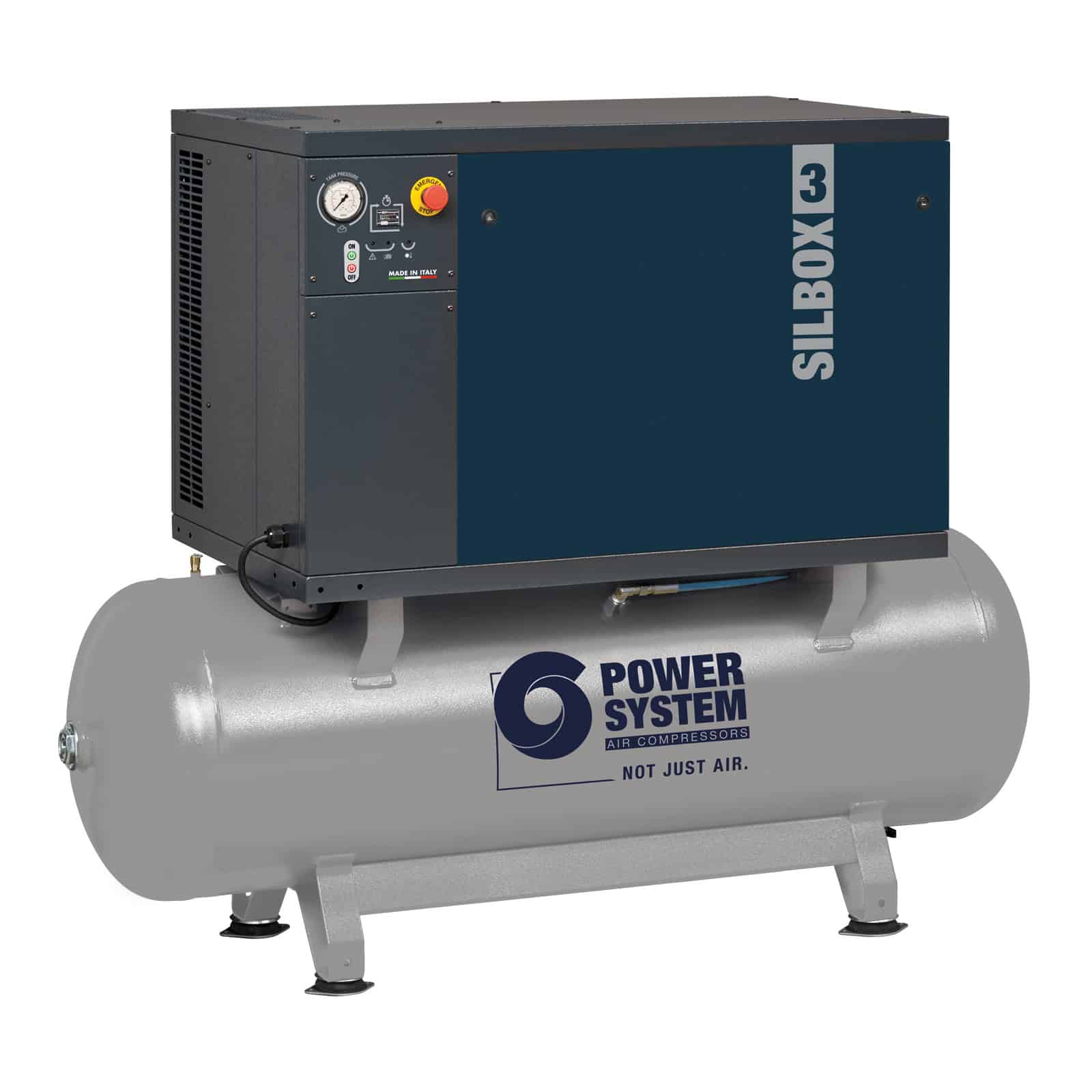

SILBOX 3 PS50/500 FT10 +ESS Professional silenced two-stage belt driven compressor, complete with tank and dryer.
